⚙️⚡ queue_workflows

Turn your local GPUs into one self-healing inference fleet.

A local-GPU inference-fleet workflow engine that uses Postgres as the queue/message bus to dispatch DAG and periodic ingest jobs across worker processes (e.g. running warm-cached models on GPUs).

Orchestrate model jobs across the machines you already own — keep each model warm, flip any box ON/OFF, auto-recover from crashes — with nothing but Postgres. No Celery, no Redis, no cluster scheduler to babysit.

⭐⭐⭐

queue_workflows is a small, self-hosted workflow engine where the database is the message bus. Inserting a row enqueues work; a trigger fires LISTEN/NOTIFY inside the writer's transaction, so there's no "queued but never woken" gap. Workers claim jobs with SELECT … FOR UPDATE SKIP LOCKED, renew a lease while they run, and a dead or wedged worker's job is automatically re-queued onto a healthy peer. It runs DAG node-jobs and periodic background jobs over a handful of heterogeneous boxes, lets you flip any machine's worker ON/OFF on demand, and keeps a GPU model warm across same-model jobs — all on hardware you already own. (It began as the queue core of a larger self-hosted stack, now extracted as one DRY, reusable library.)

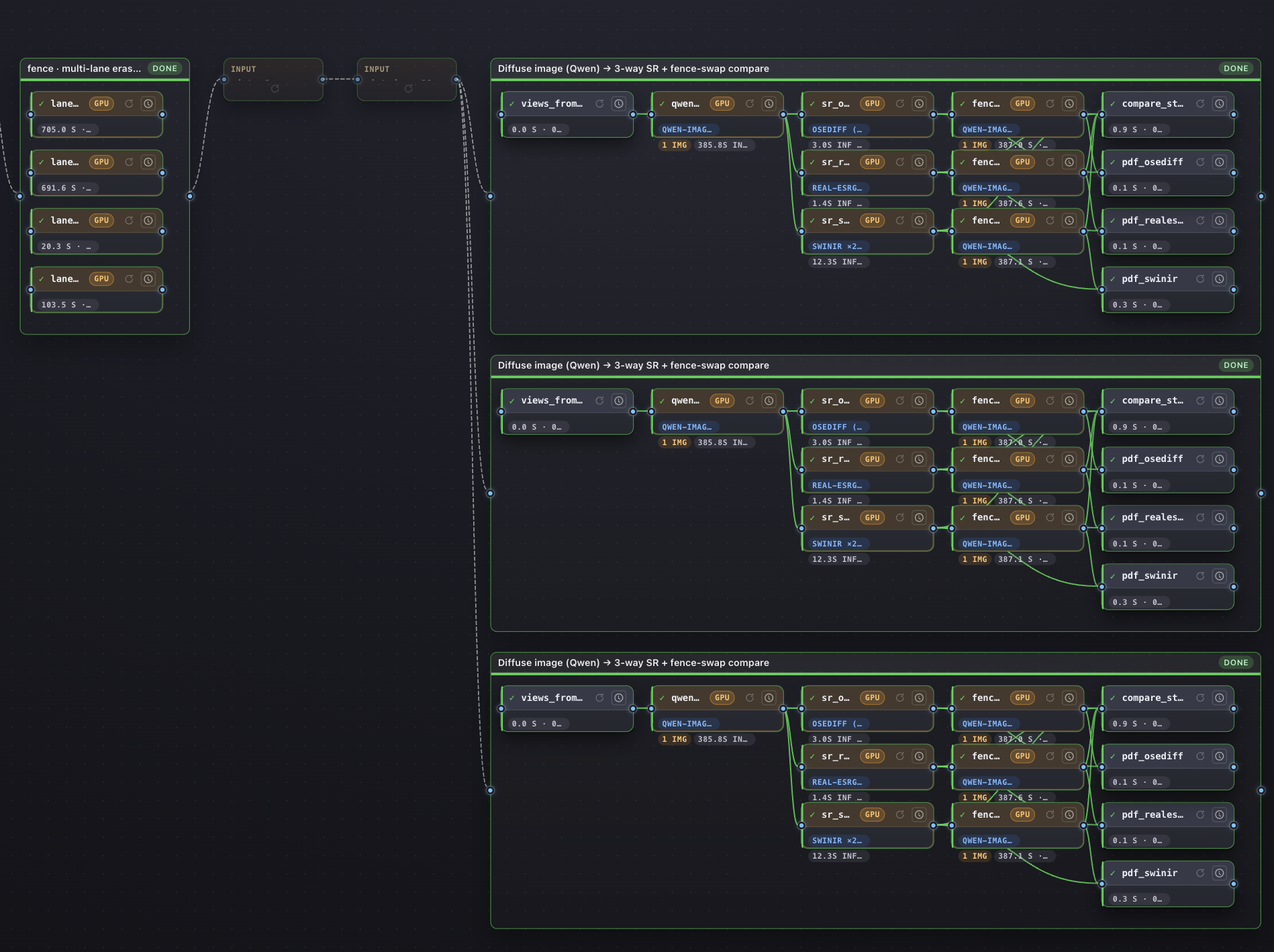

The dashboard is not part of the package — the engine just emits what one needs. The shot above is an example UI built on pg_notify('hw_metrics', …), worker_heartbeats, the node_queue.*_snapshot() snapshots, and the worker_control ON/OFF toggles. Bring your own front-end — it's a great task to hand a coding agent.

---

Table of Contents

• Why queue_workflows?
• How it compares (vs. Triton Inference Server)
• Highlights
• Installation
• Core concepts
• How it works (architecture)
• Example implementation
• Turning workers on/off
• Host-defined queues + ingest jobs
• Pluggable storage backends
• LLM backends (ollama / vLLM)
• Migrations
• Tests
• Docs
• Background
• Contributing
• License & support

---

✨ Why queue_workflows?

The pitch in one line: your Postgres is already the most durable thing you run — so let it be the queue. No second broker to babysit, no scheduler cluster to operate. You INSERT a row inside your own transaction and the work is enqueued; a dead worker's lease lapses and the row is re‑queued. Purpose‑built for a small, self‑hosted, heterogeneous CPU/GPU fleet you already own — not a 1,000‑node cloud.

Reach for it when you have a handful of self-hosted CPU/GPU boxes you already own, want GPU-aware scheduling (warm models, per-box ON/OFF) and crash-safe recovery, and would rather not stand up a broker or a workflow platform just to move jobs between machines.

Look elsewhere when you need a hosted UI, multi-region durability, or versioned-workflow replay at large scale — that's a different class of tool.

---

🆚 How it compares (vs. Triton Inference Server)

People often ask how this relates to NVIDIA Triton Inference Server. They solve different problems and compose rather than compete. Triton is a model server — it loads models into one process and answers inference requests synchronously, optimized for raw throughput. queue_workflows is a durable job orchestrator — it routes async work across a fleet of boxes with crash recovery, using Postgres as the bus. Triton makes one model fast on one node; queue_workflows reliably moves a unit of work to whichever node holds the right warm model and survives failure. You can even run Triton (or vLLM/ollama) as a node body inside a queue_workflows job — the engine schedules and recovers the work, Triton serves the tensors.

Dimension	queue_workflows	Triton Inference Server
Category	Durable async workflow / job-queue engine	Real-time model inference server
Core interaction	INSERT a row → job runs later, durably	HTTP/gRPC request → synchronous response
Latency profile	Async, seconds–hours; survives restarts	Sub-second request/response
Unit of work	Arbitrary node body / ingest task (run(...)); a model call is just one kind	A model inference (tensors in → tensors out)
Multi-step / pipelines	First-class DAG dispatch with a durable outbox, deps, skip-if, fan-out	Model ensembles + Business Logic Scripting (in-process model graph)
Throughput tricks	None by design — concurrency-1 per worker by contract	Dynamic batching, concurrent model execution, sequence batching
Model lifecycle	Warm ModelCache, idle-unload, warm-model affinity routing across the fleet	Model repository: load/unload, versioning, per-model scheduler config
Framework backends	Host-agnostic — you bring run(...); no framework coupling	TensorRT, PyTorch, ONNX, OpenVINO, vLLM, TensorRT-LLM, FIL, Python
Fleet & scheduling	Postgres FOR UPDATE SKIP LOCKED claim + LISTEN/NOTIFY, lease + reclaim across N heterogeneous boxes	Per-node server; fleet scaling delegated to Kubernetes / autoscaler
Crash recovery	Lease lapse → orchestrator re-queues onto a healthy peer; wall-clock / stall / GPU-health watchdogs re-queue-and-retry	K8s health endpoints restart the pod; no built-in job re-queue
Operator control	Per-(host, queue) ON/OFF control plane (hard-stop frees VRAM)	No fleet ON/OFF; managed by the orchestrator/K8s
State & durability	Everything in Postgres — jobs, leases, append-only event log, heartbeats	Stateless server; metrics only, no durable job state
Background / periodic work	First-class ingest jobs + scheduler ticker	Out of scope — request-driven only
Dependencies	Just Postgres (psycopg 3); optional redis/mongo backends	NVIDIA runtime / CUDA; typically GPU + K8s for scale
Protocols	None exposed — the DB is the bus	HTTP/REST + gRPC (KServe), C/Java in-process API
Telemetry	pg_notify hw-metrics, heartbeats, queue snapshots, dead-worker detection	Prometheus metrics (GPU util, throughput, latency), request tracing

Where they overlap: both keep models warm and care about GPU efficiency. Where they don't: Triton has no durable queue, no DAG, no cross-host crash-recovery, no operator ON/OFF, and no periodic work; queue_workflows has no dynamic batching, no native framework backends, and isn't a low-latency request server. Use Triton to make an inference fast; use queue_workflows to make the work reliable across the fleet.

---

🌟 Highlights

• 🔒 Exactly-once claims — SELECT … FOR UPDATE SKIP LOCKED over a Postgres queue, woken instantly by LISTEN node_job_ready so workers never poll-spin or double-run a job.
• ❤️‍🩹 Self-healing leases — a live worker renews its lease as it runs; a crashed or wedged worker's lease lapses and the orchestrator re-queues the row onto a healthy peer.
• 🔗 DAG dispatch with a durable outbox — a node's terminal status and its dispatch event are written in one transaction, then drained to fan out the next ready nodes — no lost edges, no double fan-out.
• 🔥 GPU warm-model cache — keeps a single model resident across consecutive same-model jobs and only drops/reloads on a real swap, so the expensive load happens once.
• 🟢 Operator ON/OFF control — hard-stop or park any (host, queue) worker on demand; a hard stop requeues the in-flight job to a free peer and frees its RAM/VRAM, with no restart.

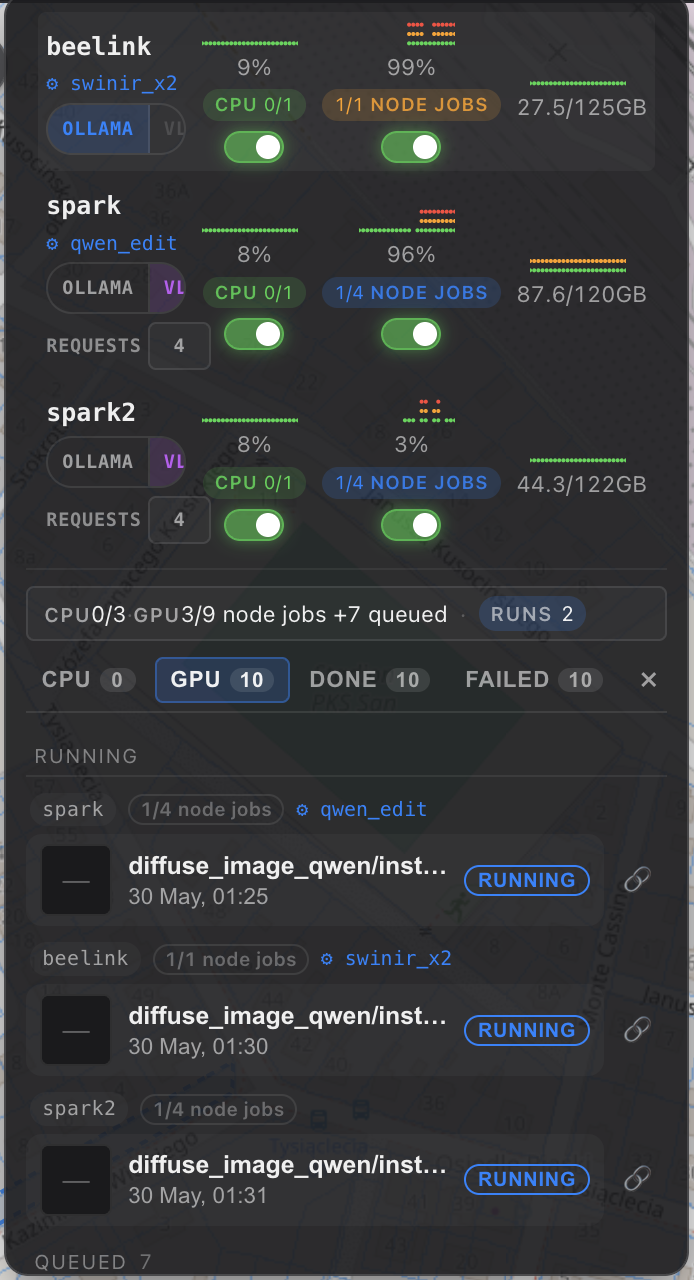

• 📊 Per-host telemetry — live CPU/GPU/RAM and capacity stream over pg_notify('hw_metrics', …) plus worker_heartbeats, ready to drive a dashboard.
• ⏰ PG-native scheduler — a built-in ticker enqueues recurring background jobs at scheduled minutes (with optional hour windows) — no cron, no external beat process.

---

Installation

Requires Python 3.10+ and Postgres 14+. The only hard runtime dependency is psycopg.

Not on PyPI yet — install straight from GitHub:

pip install "queue_workflows @ git+https://github.com/robertziel/python_workflows_queue"

Optional extras:

# hw_metrics CPU/RAM probe (GPU probe shells out, no extra dep)
pip install "queue_workflows[metrics] @ git+https://github.com/robertziel/python_workflows_queue"

# alternative storage backends
pip install "queue_workflows[redis]   @ git+https://github.com/robertziel/python_workflows_queue"
pip install "queue_workflows[mongodb] @ git+https://github.com/robertziel/python_workflows_queue"   # needs a replica set

---

🧩 Core concepts

The mental model is small but it pays to get it exactly right, because every other feature (the dispatcher, the watchdogs, the ON/OFF control plane) is just bookkeeping around these few ideas. Read this once and the rest of the README falls into place.

At the heart of it: the database is the message bus. A piece of work is a row. Enqueuing it is an INSERT. Claiming it is a single UPDATE … FOR UPDATE SKIP LOCKED. There is no broker to run, no separate queue daemon to babysit — just Postgres and a handful of worker processes.

What flows through that bus comes in two shapes, and the first job is to tell them apart.

The three-tier hierarchy

The richer of the two shapes is the DAG side: a layered recipe that the engine fans out into individual units of work. There are exactly three tiers, and the golden rule is that each layer only ever calls the one directly below it — a workflow never reaches past a pipeline to touch a node; a pipeline never calls another pipeline.

workflow   ── a pausable, multi-pipeline recipe          (defined in JSON)
   │  orchestrates ↓   (and only pipelines)
pipeline   ── a typed DAG of steps                        (a schema owning a `nodes` list)
   │  orchestrates ↓   (and only nodes)
node       ── the atomic unit of work = one run() function (a single Python module)

Tier	What it is	Who runs it	Analogy
🗺️ Workflow	A high-level recipe that strings several pipelines together and may pause for a human between them. Declared as data (JSON), not code.	The dispatcher reads it to know which pipelines to run, in what order.	A playlist
🔗 Pipeline	A typed DAG — the actual graph of steps, with dependency edges. The pipeline schema owns the nodes list and the wiring between them.	The dispatcher walks this graph to decide what's ready.	A track with movements
⚙️ Node	The atomic unit: exactly one run(...) function in one module. It does one thing — call a model, transform a file, hit an API — and returns a result.	A claim worker, in-process.	A single note

A node is deliberately tiny. The engine introspects your run(...) signature and auto-wires well-known parameters (an output dir, a model handle, a status_callback for progress, a cancel_event, the resolved inputs), so a node author writes a plain function and the engine handles the plumbing.

💡 Why three tiers and not two? Earlier designs stopped at pipelines orchestrate nodes. The workflow tier was added on top so a multi-stage process could pause mid-flight for human input and resume later — something a single DAG run can't express cleanly. The pausing happens between pipeline stages, which is exactly where a person wants to inspect a result and make a choice.

Node-jobs: how the DAG actually executes

A workflow/pipeline/node is the definition. A node-job is the execution — one concrete run of one node, recorded as a row in workflow_node_jobs and routed to either the cpu or the gpu queue. (Same node, run twice, two node-job rows.)

When a fresh mode='node' run lands in queued, the orchestrator's dispatch loop expands it: dispatcher.start_run reads the workflow/pipeline definition and enqueues the entry nodes as node-jobs. From there the graph drives itself:

• ✅ A node becomes ready when all its dependencies are completed (or skipped). The dispatcher checks this on every node's terminal event and enqueues whatever just unblocked. No central scheduler ticks through the graph — completion events pull the next nodes forward.
• 🔗 One node's output feeds the next via $from references. A downstream node declares an input like {"$from": "svinfer.primary_file"}, and at execute time the worker re-resolves that reference against the live run context — so it always reads the actual upstream result, never a stale enqueue-time snapshot. A tiny mini-language ($value, $from, $filter, $eq/$ne) covers literals, nested lookups, list filtering, and branch predicates.
• ⏸️ A node can pause for a human. An input node, when claimed, doesn't compute — it flips itself and the run to awaiting_input and emits a dispatch event describing what it needs. The run simply waits. When a value arrives (an operator submits it), the engine's InputListener notices, records it into the run context, and resumes the parked node so the DAG continues. This is the workflow tier's pause-and-resume, made concrete.

The worker → dispatcher handoff is a durable outbox: when a worker finishes a node it writes the terminal status and a workflow_dispatch_events row in one transaction. The orchestrator drains that outbox and fans out the next ready nodes. Fan-out is therefore retryable and never synchronously coupled to the worker that happened to run the node — a worker can die the instant after it commits and the graph still advances.

🌰 A concrete mental model — a two-stage "inspect a street-view image" workflow

Picture a workflow with two pipelines and a human checkpoint between them:

workflow: "streetview_inspect"
│
├─ pipeline A: detect            (GPU)
│     node  sv_fetch    →  sv_detect    →  sv_annotate
│     (CPU)              (GPU)           (CPU)
│
├─ (input) choose_best           ⏸  pauses — a person picks one detection
│
└─ pipeline B: reconstruct       (GPU)
      node  build_scene   →   export_glb
      (GPU)                    (CPU)

Step by step, in terms of rows on the bus:

1. The run is enqueued (mode='node', queued). The dispatcher expands it and inserts one workflow_node_jobs row for sv_fetch on the cpu queue.
2. A CPU worker claims it (queued → running via SKIP LOCKED), runs run(...), writes completed + a dispatch event in one txn.
3. The orchestrator drains the event, sees sv_detect's only dependency is now done, and enqueues it on the gpu queue. A GPU worker claims it; its input {"$from": "sv_fetch.image_path"} resolves to the path the fetch node just produced.
4. sv_detect completes → sv_annotate becomes ready and runs on CPU.
5. The choose_best input node is claimed; instead of computing, it sets the run to awaiting_input and waits. Nothing is running now — the fleet is free for other work.
6. A person submits their pick. The InputListener resumes the node, the choice lands in the run context, and pipeline B's build_scene becomes ready — its input {"$from": "choose_best.selection"} reads exactly what the human chose.
7. build_scene → export_glb finish; with no nodes left, the run flips to completed.

Notice what didn't happen: no layer skipped a level (the workflow only ordered pipelines; each pipeline only enqueued its own nodes), and CPU and GPU work interleaved freely because each node-job carries its own queue.

The two job families

The DAG side is only half the engine. There's a second, simpler shape that shares the same Postgres bus, lease model, and watchdogs but has no graph at all:

	🔗 DAG node-jobs	🔁 Standalone ingest jobs
Table	workflow_node_jobs	ingest_jobs
Queues	cpu / gpu (reserved)	host-defined (e.g. fetch, load)
Shape	a node inside a pipeline DAG	a single self-contained task — no dependencies, no fan-out
Enqueued by	the dispatcher, fanning out a workflow run	the scheduler (on a cadence) or any host directly
Carries	resolved $from inputs from upstream nodes	optional per-job args (parametrised work)
Use it for	multi-step recipes with data flowing between steps	periodic pulls, parametrised batch tasks, anything that isn't a graph

Ingest jobs are for work that's recurring or parametrised rather than graph-structured — fetch-this-feed-every-37-minutes, or run-scenario-N-with-these-args. The scheduler is a plain Python ticker (not pg_cron) that sleeps to the next scheduled minute and inserts the rows; an ingest claim worker picks them up exactly like a node-job. Because the queue names are host-defined (only cpu/gpu are reserved for the DAG path), a second, totally different application can route its own queues through the same engine — the path was generalized precisely so the engine isn't single-tenant.

📌 The one-line takeaway: a workflow is a JSON recipe of pipelines; a pipeline is a typed DAG of nodes; a node is one run() function. Executing a node produces a node-job row that a worker claims off the cpu/gpu queue, the dispatcher walks the graph by reacting to each node's completion, and $from carries one node's output into the next. Anything that isn't a graph — periodic or parametrised work — rides the parallel ingest-job family on host-defined queues instead.

---

🏗️ How it works (architecture)

Three independent OS processes run against one Postgres — and the database itself is the message bus. There's no separate broker to deploy, monitor, or keep in sync with the source of truth: the queue, the work, and the results all live in the same database, in the same transaction.

Enqueue is an INSERT. Putting a row into workflow_node_jobs (or ingest_jobs) enqueues the work — and it happens inside the writer's own transaction. A trigger fires pg_notify('node_job_ready', …) as part of that same commit, so the wake-up and the row become visible atomically. There is no "the row is queued but nobody got woken" window, and no "we notified but the row isn't committed yet" race: either both land or neither does. A consumer that shares the database can enqueue work atomically alongside its own domain rows, and the notify simply rides along on that commit.

Liveness is a lease, not a heartbeat-and-hope. When a claim worker picks up a row (SELECT … FOR UPDATE SKIP LOCKED, woken by LISTEN), it stamps a lease and a background LeaseRenewer keeps renewing it for as long as the job is genuinely running. A worker that dies, hangs, or gets wedged (a frozen GPU, a hard crash, a yanked power cord) simply stops renewing — its lease lapses, and the orchestrator's reclaim sweep notices the expired lease and re-queues the row onto a fresh, healthy worker. Recovery is the default behavior, not a manual intervention: a job is never silently lost because the machine that owned it disappeared.

💡 Because a lapse is detected by absence of renewal, no cooperation is required from the failed worker — which is exactly the failure mode you can't rely on a worker to report about itself.

flowchart LR
    subgraph PROC["Three processes (separate OS processes, GIL-independent)"]
        direction TB
        O["<b>Orchestrator</b><br/>• bootstraps migrations<br/>• dispatch loop — DAG fan-out<br/>• drains dispatch outbox<br/>• lease-reclaim + dead-worker sweep<br/>• InputListener (resume parked nodes)"]
        S["<b>Scheduler</b><br/>PG-native ticker<br/>enqueues ingest_jobs<br/>at scheduled minutes"]
        W["<b>Claim worker(s)</b><br/>1 process == 1 worker<br/>LISTEN + FOR UPDATE SKIP LOCKED<br/>LeaseRenewer + Watchdogs<br/>GPU worker owns warm ModelCache"]
    end

    subgraph PG["Postgres — the message bus (one database)"]
        direction TB
        T1["workflow_runs"]
        T2["workflow_node_jobs<br/>(cpu / gpu — DAG)"]
        T3["ingest_jobs<br/>(host-defined queues)"]
        T4["workflow_dispatch_events<br/>(durable outbox)"]
        T5["worker_heartbeats<br/>worker_controls"]
    end

    S  -- "INSERT + pg_notify(ingest_job_ready)" --> T3
    O  -- "INSERT + pg_notify(node_job_ready)"   --> T2
    T2 -. "NOTIFY wakes" .-> W
    T3 -. "NOTIFY wakes" .-> W
    W  -- "claim → run → write (terminal status + dispatch_event) in ONE txn" --> T4
    T4 -- "drain → fan out next ready nodes" --> O
    O  -- "reclaim lapsed leases → re-queue" --> T2
    W  -- "renew lease · emit heartbeat · obey ON/OFF" --> T5

Loading

The three processes, at a glance:

• 🧭 Orchestrator — bootstraps the migration chain on startup, then runs the dispatch loop that fans out the DAG (a node completing unblocks its dependents). It drains the durable dispatch-event outbox, runs the lease-reclaim / dead-worker sweep that re-queues lapsed rows, and hosts the InputListener that resumes nodes parked waiting on human/external input.
• ⏰ Scheduler — a Postgres-native ticker that INSERTs ingest_jobs at their scheduled minutes (optionally hour-restricted), for periodic, non-DAG work. No external cron, no celery beat.
• ⚙️ Claim worker(s) — one process is one worker. Each one LISTENs for its queue, claims a row with FOR UPDATE SKIP LOCKED, and brackets the job with a LeaseRenewer plus a stack of Watchdogs (wall-clock budget, no-progress stall, GPU-health). A GPU worker additionally owns a warm ModelCache that keeps one model resident across consecutive same-model jobs.

Exactly-once terminals via an atomic outbox. When a worker finishes a job, it writes the terminal status and the dispatch event in one transaction (into workflow_dispatch_events). The orchestrator drains that outbox to fan out the next ready nodes. So a worker crash after finishing the work but before the orchestrator reacts can't drop the follow-on: the event is already durably committed next to the result, and the dispatch is replayed on drain rather than lost.

📦 Two job families share the same engine

The engine carries two kinds of work over the same Postgres-as-bus machinery:

• DAG node-jobs — workflow_node_jobs, on the reserved cpu / gpu queues, fanned out by the dispatcher as dependencies clear. This is the workflow path.
• Standalone ingest jobs — ingest_jobs, on host-defined queues (you choose the names), with no DAG — fire-and-forget periodic or parametrised work, optionally carrying per-job args.

Both families get the same durability guarantees: atomic enqueue-with-notify, lease/reclaim, idempotent terminals, and the dispatch outbox. The cpu / gpu queue names stay reserved for the DAG path; everything else is yours.

🔌 Why Postgres-as-bus (and not a dedicated broker)?

For a small, self-hosted heterogeneous fleet, a separate message broker is a second stateful system to run, secure, back up, and reconcile against your real data — and a second place for "the queue says X, the database says Y" to diverge.

Collapsing the bus into Postgres buys you:

• One source of truth. The queue is the data. No two-system consistency problem, no dual-write between broker and DB.
• Transactional enqueue. Work appears exactly when the writer's transaction commits — pg_notify rides the same commit, so there's no lost-wake or premature-wake race (the "queued but no wake" gap is closed by construction).
• Crash-safe by default. Leases + the reclaim sweep turn any worker death or hang into an automatic re-queue; the outbox makes terminal fan-out replay-safe.
• Operational simplicity. psycopg is the only hard dependency. If you already run Postgres, you already run the bus — nothing else to deploy on the fleet.

---

Example implementation

Here's the whole thing end‑to‑end: a trivial node, a pipeline that references it, a workflow that runs that pipeline, the host wiring, and a worker that actually executes it. Nothing here is pseudo‑code — every call is part of the public API.

1. Define a node — one run() function

A node is just a module exposing a single run(...). The engine introspects the signature and auto‑wires well‑known kwargs by name — out (the run's output dir), status_callback, cancel_event, inputs, model_handle — so you only declare the ones you actually use. Return a JSON‑able dict; its keys become the node's context_delta for downstream $from refs.

# myapp/nodes/greet.py
from pathlib import Path
from typing import Any


def run(out: Path, name: str = "world", status_callback: Any = None) -> dict:
    """Trivial CPU node: write a file, return a tiny summary."""
    if status_callback:
        status_callback(0.5, "greeting")

    out.mkdir(parents=True, exist_ok=True)
    (out / "hello.txt").write_text(f"hello, {name}!\n")

    return {"primary_file": f"{out.name}/hello.txt", "greeted": name}

That's a complete node. No base class, no decorator, no registration call — discovery is by dotted module name (configured below).

2. Reference it from a pipeline + workflow

Two small JSON files. The pipeline schema owns the DAG (nodes with id / node / depends_on / gpu / inputs / outputs); the workflow strings one or more pipeline steps together and maps run‑level context into them.

myapp/pipelines/greet.schema.json — the DAG (one node, CPU)

{
  "name": "greet",
  "display_name": "greet · hello world",
  "requires_gpu": false,
  "inputs": {
    "type": "object",
    "properties": {
      "name": { "type": "string", "default": "world", "maxLength": 64 }
    }
  },
  "outputs": {
    "primary_file": { "type": "file", "mime": "text/plain" },
    "summary_keys": ["greeted"]
  },
  "nodes": [
    {
      "id": "greet",
      "node": "greet",
      "depends_on": [],
      "inputs":  [{ "name": "name", "from": "pipeline.name" }],
      "outputs": [{ "name": "hello.txt", "kind": "text" }],
      "gpu": false
    }
  ]
}

"node": "greet" resolves to the myapp.nodes.greet module via the node_module_package prefix you set in step 3. "gpu": false routes the node‑job to the cpu queue (set true to route to gpu).

myapp/definitions/greet.json — the workflow (one pipeline step)

{
  "name": "greet",
  "display_name": "greet — hello world",
  "mode": "node",
  "steps": [
    {
      "id": "greet",
      "kind": "pipeline",
      "pipeline": "greet",
      "inputs": { "name": { "$from": "parcel.label" } }
    }
  ]
}

The $from ref pulls name out of the run's context at execute time (late resolution — workers re‑resolve refs when they pick up the job, not when it's enqueued).

3. Wire the host (configure + seams) and bootstrap

One startup module does all the wiring. configure() only mutates the keys you pass — everything else keeps its default — and db.bootstrap() applies the engine's migration chain idempotently against the queue_schema_version ledger.

# myapp/engine.py
import json
from pathlib import Path

import queue_workflows
from queue_workflows import db

DEFS = Path(__file__).parent / "definitions"
PIPES = Path(__file__).parent / "pipelines"


def _load_workflow(name: str) -> dict:
    return json.loads((DEFS / f"{name}.json").read_text())


def _pipeline_schema(name: str) -> dict:
    return json.loads((PIPES / f"{name}.schema.json").read_text())


def init() -> None:
    # 1. configure the engine (every key is optional)
    queue_workflows.configure(
        db_url_env="MYAPP_DB_URL",          # env var holding the Postgres DSN
        node_module_package="myapp.nodes",  # "greet" -> myapp.nodes.greet
        container_prefix="myapp-",          # cgroup attribution for hw_metrics
    )

    # 2. tell the dispatcher where the DAG definitions live
    queue_workflows.set_workflow_provider(_load_workflow, _pipeline_schema)

    # 3. apply the engine's migration chain (idempotent)
    db.bootstrap()

💡 The DSN itself lives in the MYAPP_DB_URL environment variable, not in code — configure(db_url_env=...) only names the variable to read. Keep real secrets in your secrets store.

4. Launch a worker (console scripts)

Three independent processes run against the one Postgres. For most setups you run a claim worker per queue per host; the orchestrator drives DAG fan‑out + lease reclaim; the scheduler fires periodic ingest jobs (skip it if you have none).

# Each process calls myapp.engine.init() at startup, then hands off to the engine.
# (e.g. PYTHONSTARTUP, a thin __main__, or a wrapper that imports + calls init().)

queue-orchestrator                 # DAG dispatch loop + dead-worker lease reclaim
queue-claim-worker --queue cpu     # claims & runs cpu node-jobs (our greet node)
queue-claim-worker --queue gpu     # add one per GPU host for gpu-routed nodes
queue-scheduler                    # optional — only if you registered ingest tasks

Or call the entry points directly from your own bootstrap (handy when you want init() to run in‑process first):

from myapp.engine import init
import queue_workflows

init()
queue_workflows.claim_worker.main(["--queue", "cpu"])

Each claim worker is LISTEN node_job_ready + SELECT … FOR UPDATE SKIP LOCKED: it sleeps until a row is enqueued, claims exactly one, renews its lease while run() executes, and writes the terminal status and the dispatch‑event outbox row in a single transaction. The orchestrator drains that outbox and fans out the next ready nodes.

5. Kick off a run

Enqueuing work is just inserting a workflow_runs row and expanding its DAG — start_run() enqueues every node whose depends_on is empty, the pg_notify rides the transaction, and a listening worker wakes immediately.

import uuid
from myapp.engine import init
from queue_workflows import run_store, dispatcher

init()

run_id = str(uuid.uuid4())
run_store.insert_run(
    run_id=run_id,
    workflow_name="greet",
    context={"parcel": {"label": "Ada"}},   # feeds the $from ref → name="Ada"
)
dispatcher.start_run(run_id)                 # fan out the initial ready nodes

The cpu worker from step 4 claims the greet node, runs it, writes hello.txt, and flips the run to completed. That's the entire loop — inserting a row is enqueuing the work.

Here it is, working

The loop in motion — a run fans out into node‑jobs, a claim worker picks one up under FOR UPDATE SKIP LOCKED, renews its lease as it runs, and writes the terminal status + dispatch event in one transaction. Capacity, queue depth, and per‑host telemetry all flow through the same Postgres that is the message bus.

This engine was extracted from a larger self‑hosted stack and generalized into a standalone library — so the example above is the same machinery that runs in production, just trimmed to one node.

---

🎚️ Turning workers on/off — the operator control plane

Each machine runs one worker per queue under a host_label (a box can run both a cpu and a gpu worker). An operator can flip any one of them ON or OFF independently, and the state is just a row in worker_controls — so the engine's helper, the queue-worker-control CLI, or any app sharing the database (a web app, a cron, a button in your dashboard) can do it. A trigger fires pg_notify('worker_control', '<host>:<queue>') so the worker reacts immediately, no polling lag, no app‑side NOTIFY code.

Turning a worker OFF is a hard stop: it requeues the in‑flight job (resume‑style, redistributed to a healthy peer — not failed), frees RAM/VRAM, and the worker comes back parked (idle, not claiming) until turned back ON.

# CLI — defaults --host to the local hostname
queue-worker-control --queue gpu --off                 # hard-stop this box's gpu worker
queue-worker-control --queue gpu --on  --host host-a   # bring it back (resumes in place, no restart)

from queue_workflows import worker_control

worker_control.disable_worker("host-a", "gpu")     # hard stop + stay off
worker_control.enable_worker("host-a", "gpu")      # resume in place
worker_control.desired_state_for("host-a", "gpu")  # 'on' | 'off'   (absent ⇒ 'on')

-- …or a plain SQL write from any consumer sharing the DB. The trigger wakes the worker.
INSERT INTO worker_controls (host_label, queue, desired_state, stop_policy, requested_by)
VALUES ('host-a', 'gpu', 'off', 'hard', 'ops')
ON CONFLICT (host_label, queue) DO UPDATE
  SET desired_state = EXCLUDED.desired_state, updated_at = now();

A worker absent from worker_controls is treated as ON (default‑on), and the accessors no‑op cleanly on a database that predates the feature — so adding the engine changes nothing until you opt in.

Why a process exit (and a requeue, not a cancel) — the design

A claim worker runs the node body inline on its main thread — nothing wraps it in a sub‑thread or subprocess. So a watcher thread can't preempt in‑flight work, and a wedged CUDA kernel won't honour a cooperative cancel. Terminating the process is the only thing that reliably stops the work and reclaims RAM/VRAM (the OS tears down the CUDA context on exit). It's the same lever the in‑engine watchdogs already use — a control hard‑stop exits os._exit(79), and the supervisor's restart: on-failure brings the container back, where boot re‑reads the row and parks instead of claiming.

The requeue is resume‑style: it flips the row running → queued, clears the lease, and bumps priority to the front without incrementing watchdog_retries (this is operational redistribution, not a node failure). Clearing claimed_by also trips any surviving worker's status watcher, so the job is never double‑run across the hand‑off.

Extensible stop policies — worker_control.STOP_POLICIES maps a policy name → handler. Only "hard" is wired today; stop_policy is free‑form TEXT in the DB, so future policies (drain = finish the current job then park; pause = stop claiming but keep the warm model) slot in with no schema or API change.

See docs/worker_control.md for the full control flow and the residual GIL‑hang backstop.

---

🏷️ Host‑defined queues + parametrised ingest jobs (multi‑tenant)

Two job families share the engine: DAG node‑jobs (workflow_node_jobs, the reserved cpu/gpu queues, fanned out by the dispatcher) and standalone ingest jobs (ingest_jobs, your own queue names, no DAG). The ingest path is not limited to one app's vocabulary — a second consumer (say a forecast service) can route its own queues and carry per‑job arguments, and enqueue them atomically with its own domain row (the NOTIFY rides the caller's transaction):

queue_workflows.configure(
    db_url_env="MY_DB_URL",
    ingest_queues=frozenset({"ingest", "hydro", "hydraulic", "corrdiff"}),  # NOT cpu/gpu (reserved for the DAG path)
    ingest_default_budget_s=3600,                                           # watchdog budget for these queues
)
queue_workflows.register_ingest_task("run_scenario", run_scenario)         # fn(reason) OR fn(reason, args) -> dict

# Parametrised + atomic with your own write — one transaction, no dual-write:
with my_pool.connection() as conn:
    my_create_scenario(conn, scenario_id)
    node_queue.enqueue_ingest_job(
        task_name="run_scenario", queue="hydraulic",
        args={"scenario_id": scenario_id}, conn=conn,
    )

A registered callable may be fn(reason) (args ignored — back‑compat) or fn(reason, args). Ingest workers emit worker_heartbeats, so the queue‑indicator snapshot reflects live workers per queue:

from queue_workflows.scheduler import ScheduleEntry

# PG-native cadence — hour-restricted so it no longer fires 24×/day:
ScheduleEntry("glofas", minute=30, task_name="run_glofas", queue="ingest", hours=frozenset({6}))

node_queue.ingest_snapshot()   # {"queues": {q: {queued, running, completed, failed, workers}}}

ℹ️ cpu/gpu stay reserved for the DAG node path; custom ingest queues require migration version 8 (which moved the queue allow‑list from a DB CHECK to host‑side validation and added the args column).

---

🗄️ Pluggable storage backends — pg · redis · mongodb

Postgres is the engine — but the queue store is selectable (since v0.3.0). redis and mongodb are opt‑in providers that reproduce the same durable‑queue contract Postgres gives you: claim exactly‑once, lease/reclaim, idempotent terminals, an atomic outbox, and per‑namespace tenant isolation. Selecting pg (the default) imports nothing new and changes nothing.

import queue_workflows
queue_workflows.configure(db_backend="redis")        # or "mongodb" / "pg" (default)

from queue_workflows.backends import get_backend
be = get_backend()                                    # bound to your configured namespace
job_id = be.enqueue("cpu", {"task": "render"})
job    = be.claim("cpu", worker="box-1", lease_s=30)
be.complete_with_event(job["id"], "completed", result={"ok": True})   # go terminal + append event, atomically

pip install "queue_workflows[redis] @ git+https://github.com/robertziel/python_workflows_queue"   # or [mongodb] (mongo needs a replica set)

The port is deliberately non‑leaky: no method takes or returns a driver handle (psycopg cursor / redis pipeline / pymongo session), and each backend is bound to one namespace so two tenants on one server stay isolated.

How each backend reproduces the contract (capability matrix + honest caveats)

Guarantee	pg	redis	mongodb
Claim exactly‑once	FOR UPDATE SKIP LOCKED	ZPOPMIN inside a Lua script	find_one_and_update
Priority + FIFO	ORDER BY priority DESC, created_at	sorted set, score -priority, FIFO tiebreak	sort priority desc, seq asc
Lease / reclaim	lease column + UPDATE … lease < now()	per‑queue running ZSET scored by expiry	lease_expires_at < now sweep
Idempotent terminal	UPDATE … WHERE status NOT IN (terminal) RETURNING *	Lua status guard	find_one_and_update status guard
Atomic outbox	one transaction	one Lua script	one multi‑doc transaction
Wake	LISTEN / pg_notify (in‑txn)	pub/sub (fire‑and‑forget)	change stream on a capped collection
Namespace isolation	namespace column	key prefix qw:<ns>:	one database per namespace

Caveats (the weakenings, stated plainly):

• Redis has no cross‑key ACID transaction — atomicity comes from Lua (a single server‑side step), so this targets a single Redis instance, not Cluster. The wake is pub/sub (fire‑and‑forget); a subscriber that's down misses it, and the worker's safety poll covers that — exactly as it does behind PG LISTEN.
• MongoDB transactions and change streams need a replica set (single‑node RS is fine); on a standalone mongod the atomic‑outbox calls and the wake fail loudly.
• Counts: pg derives counts from live status (can't drift); redis keeps maintained counters (decremented against the prior status); mongo counts live documents.

Integration boundary (read this): the SPI is additive. Selecting redis/mongodb does not re‑home the DAG orchestrator / claim‑worker / dispatcher — those still run on Postgres. Use the SPI today as a standalone pluggable durable queue. Full design, the contract suite, and the v0.3.0 audit: docs/storage_backends.md.

---

🤖 LLM backends — per‑machine ollama / vLLM, with an idle supervisor

GPU workflow nodes often need a co‑tenant LLM/VLM server (e.g. a vision model that captions or reasons over an image) running next to the GPU claim worker. Which kind of server a machine runs is per‑machine, operator‑set state:

• 🦙 ollama — an externally‑managed, always‑up daemon; frees idle VRAM itself via OLLAMA_KEEP_ALIVE. Lifecycle calls are inert.
• ⚡ vLLM — an OpenAI‑compatible server the engine can stop/start to reclaim VRAM; it batches up to --max-num-seqs = PAR concurrent requests (the whole reason to pick it). A built‑in idle supervisor stops it after vllm_idle_ttl_s of zero in‑flight requests, then the next request pays the cold start again.

The node always drives one surface (backend.chat_url + a request‑accounting bracket) — it never branches on the server type. Operators set the type per box (a trigger NOTIFYs worker_llm_config_changed, so the worker rebuilds its backend with no restart), and each host advertises which server types it can actually run in its heartbeat — so a UI can gray out vLLM where there's no image for it.

	🦙 ollama	⚡ vLLM
Server lifecycle	external (always up)	engine‑managed (start on demand, idle‑stop)
Idle VRAM	OLLAMA_KEEP_ALIVE	supervisor stop_server() after vllm_idle_ttl_s
Concurrency	OLLAMA_NUM_PARALLEL (serial by default)	--max-num-seqs = PAR continuous batching
Model switch	hot‑load a new tag	server restart
Cold start	none (daemon resident)	real (~1–4 min for a 7B)
Best when	a model is always needed on that box	bursty VLM load + you want VRAM back for other work

💡 llm_parallelism (PAR) is the server's request‑batching capacity — not the claim‑worker concurrency, which stays 1.

The two GPU lanes — and why a diffusion model never goes through ollama/vLLM

A diffusion / super‑resolution / CV model never goes through ollama or vLLM — those serve language / vision‑language models only. So one GPU claim worker runs two lanes on the single physical GPU:

• INLINE lane (concurrency‑1) — in‑process diffusers / CV, with one warm model held by the model cache. Diffusion is compute‑bound (a single render saturates the GPU's SMs ≈96%), so extra diffusion jobs would only time‑slice the same compute — concurrency‑1 is the right call by design.
• VLM POOL lane (≤ PAR threads) — the require_model = NULL jobs, which run no model in‑process; they only HTTP to the per‑host ollama/vLLM server, where batching pays off (LLM/VLM inference is memory‑bound).

The two lanes share one GPU, so the engine bounds the total to PAR: while an inline diffusion job runs it occupies one PAR slot (the pool feeder budgets PAR − 1); idle inline ⇒ the full PAR pool. A fill‑before‑spill packer consolidates VLM work onto the highest‑ranked box before spilling — freeing the other boxes for diffusion or to idle‑unload.

Host wiring (the inversion seams): set_vllm_lifecycle(stop_fn, start_fn) teaches the in‑worker supervisor how to stop/start a vLLM sidecar container (e.g. via the Docker socket) — so it needs no docker restart policy; set_llm_servers_available([...]) declares this host's runnable server types. Both are default‑safe (migrations 0013/0014): on an older DB the accessors return the all‑defaults config and the {ollama} baseline, so the engine runs unchanged. Full design, the request‑flow diagrams, and the lifecycle state machine: docs/llm_backends.md.

---

🗄️ Migrations

The engine owns its schema. Migrations ship as package data at queue_workflows/migrations/NNNN_*.sql, and queue_workflows.db.bootstrap() applies the chain against a version ledger (queue_schema_version) — idempotent, so it's safe to run on every boot.

A host with its own domain tables runs a second chain alongside the engine's, with its own version table:

import queue_workflows

# 1. engine chain → queue_schema_version (queue tables)
queue_workflows.db.bootstrap()

# 2. your app's chain → its own ledger, fully independent of the engine's
queue_workflows.db.bootstrap(
    migrations_dir="myapp/migrations",
    version_table="myapp_schema_version",
)

queue_workflows.migrations.dir() returns the engine's migration directory if you want to inspect or diff it.

🧪 Tests

pip install -e '.[test]'

QUEUE_WORKFLOWS_TEST_DB_URL=postgresql://user:pw@host:port/queue_workflows_test \
  python -m pytest

The suite forces a *_test DB and applies the engine migration chain — it refuses to run against a non-_test database, so you can't point it at anything precious. See tests/conftest.py.

Exercising the optional storage backends

The multi-backend contract suite additionally reads QUEUE_WORKFLOWS_TEST_REDIS_URL / QUEUE_WORKFLOWS_TEST_MONGO_URL. Each backend skips if its server is unset or unreachable, so the default pg-only run stays green with nothing extra installed.

📚 Docs

• docs/watchdogs.md — the liveness model: lease renewal, the wall-clock + no-progress watchdogs, and the orchestrator-side dead-worker detector (last-resort recovery from a GPU hardware hang).
• docs/worker_control.md — the operator ON/OFF control plane (hard-stop vs park a (host, queue) worker), the os._exit(79) contract, and the extensible stop-policy seam.
• docs/storage_backends.md — the pluggable StorageBackend SPI (pg / redis / mongodb): the contract, the capability matrix, and the integration boundary.
• docs/llm_backends.md — the per-machine ollama / vLLM server abstraction: the LLMBackend port, the idle supervisor, the config-synced factory, and the two-lane GPU concurrency model.

📦 Background

The engine was extracted from a larger self-hosted stack into this standalone, MIT-licensed package so it can be reused and shared on its own.

🤝 Contributing

PRs and issues are welcome — bug reports, backend providers, docs, and rough edges all help. Please skim CHANGELOG.md first to see what's landed and what's in flight, and add a note under ## [Unreleased] with your change.

---

⚖️ License & support

MIT © Robert Zieliński — see LICENSE. Use it, fork it, ship it.

📓 Changelog · 📚 Docs · 🏷️ Releases
