TeXLayout.jl

A Julia-idiomatic OpenType-aware LaTeX math typesetter, designed for use with Makie.jl. Full documentation available via the link above.

Full-sheet example outputs from the stress renderer:

• New Computer Modern maths and text
• TeX Gyre Bonum maths and text
• TeX Gyre Pagella maths and text
• TeX Gyre Schola maths and text
• TeX Gyre Termes maths and text
• Luciole maths and text
• STIX Two maths and text
• Fira Math + Fira Sans maths and text

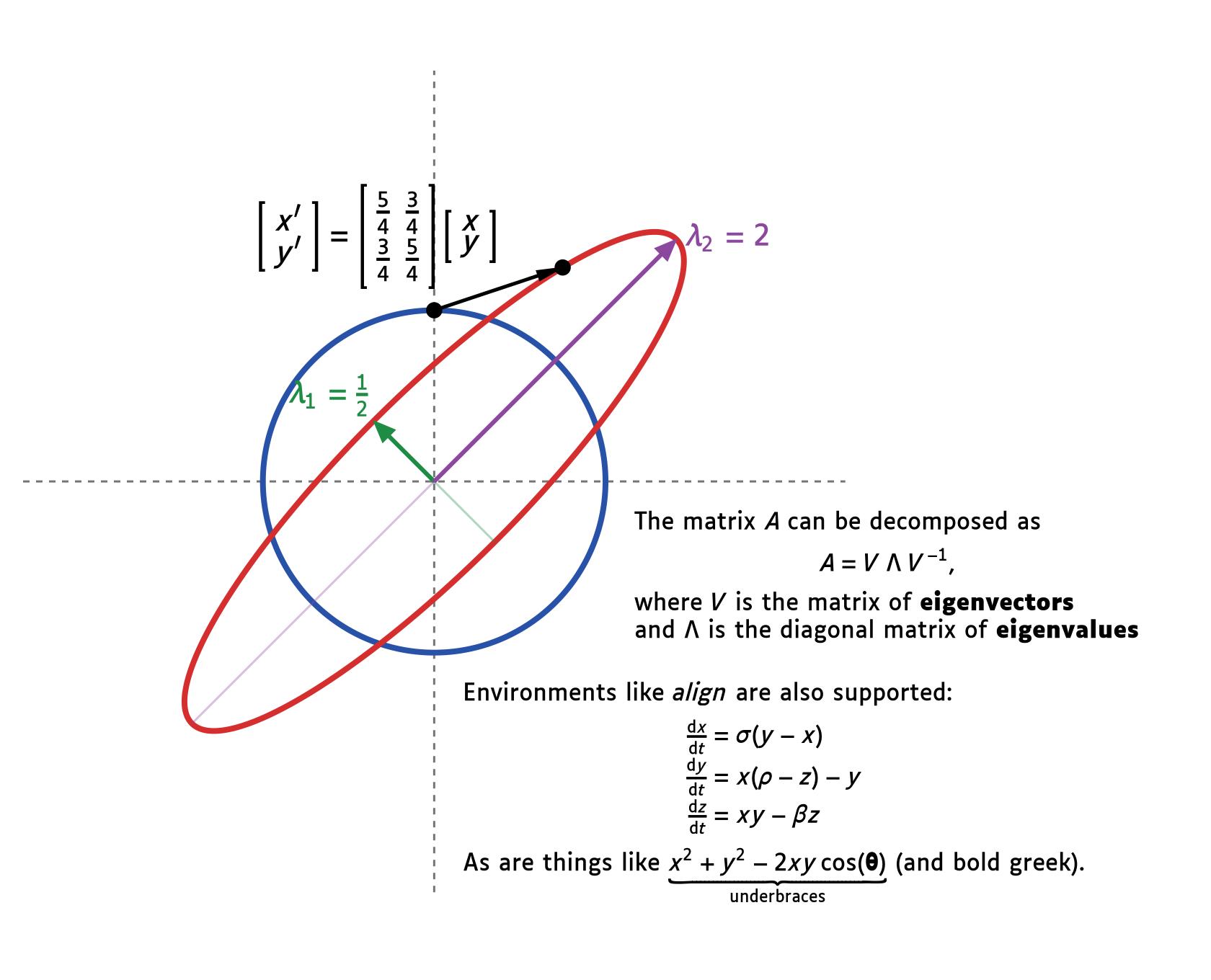

Since a picture is worth a thousand words...

Overview

TeXLayout.jl converts LaTeX math strings into a flat list of positioned glyph elements that a renderer (e.g. CairoMakie or GLMakie) can consume directly. The pipeline is:

tokenize → parse_latex → layout → Vector{LayoutBox}

Each LayoutBox carries a TeXElement (glyph, glyph ID, rule, or space), a 2-D position in em units relative to the formula baseline, and a scale factor.

Beyond single formulas, layout_document typesets mixed text-and-math input — styled text, inline $…$ math, and display-math environments — into a measured TeXBox of positioned elements ready for the same renderers.

Relationship to MathTeXEngine.jl

MathTeXEngine.jl is Makie's current LaTeX engine, and TeXLayout.jl is intended as a drop-in replacement for it. The two take different approaches:

• Fonts available. MathTeXEngine renders in Computer Modern / New Computer Modern. TeXLayout bundles eight math font families (New Computer Modern, the TeX Gyre families, STIX Two, Fira Math, and Luciole) and can can use any other OpenType Math font. A notable difference is that TeXLayout takes metrics directly from the MATH table in the font (hence being usable with any OpenType Math font).
• Integration. TeXLayout plugs into Makie through the same generate_tex_elements entry point MathTeXEngine uses, so loading both packages switches Makie over without further changes (see Makie integration).
• Scope and maturity. MathTeXEngine is an established, widely used package. TeXLayout is newer; it covers a broad LaTeX-math feature set plus mixed text/math document layout, but has seen less production use.

LaTeX coverage

Both engines handle the common core: fractions (\frac), radicals (\sqrt), sub/superscripts, auto-sized \left…\right delimiters, named operators (\sin, \lim, …), font switches (\mathbf, \mathbb, \mathcal, …), space commands, and a large symbol/accent set (including wide accents such as \widehat). TeXLayout additionally supports a number of constructs that MathTeXEngine does not currently parse:

• Environments. \begin{matrix}/pmatrix/bmatrix/Bmatrix/vmatrix/ Vmatrix/smallmatrix, cases, and \begin{array}{colspec} with per-column l/c/r alignment and single/double vertical rules. (Note that some vertical rules do not render in Makie due to a bug in their implementation.) In document mode also align, aligned, gather, and equation.
• Binomials and generalised fractions. \binom, \genfrac, and the display/text fraction variants \dfrac / \tfrac.
• Explicit style overrides. \displaystyle / \textstyle / \scriptstyle / \scriptscriptstyle, and \limits / \nolimits placement control on operators.
• Over/under braces (\overbrace, \underbrace) and the full style cascade driven by the font's MATH table.
• Mixed text-and-math documents via layout_document (styled text, inline $…$, display math, line and paragraph breaks) — MathTeXEngine targets single math formulas.

Conversely, MathTeXEngine is the more battle-tested parser on the shared core, and some symbols without a single Unicode codepoint (certain negated relations) currently render as blank space in TeXLayout. This is not an exhaustive list; coverage on both sides continues to change.

Key features

• Full TeX style cascade (Display / Text / Script / ScriptScript, each with a cramped variant), driven entirely by the font's OpenType MATH table — no hard-coded constants.
• Correct sub/superscript placement, fractions, radicals, and auto-sized delimiters. Italic correction applied to subscripts on slanted bases (e.g. \int) to track the stroke.
• Named math operators (\sin, \cos, \lim, \operatorname{…}, and 25 others) rendered upright using the companion regular font or the math font's codepoint mapping.
• Inter-atom spacing (TeX atom-class table: ord/bin/rel/op/open/close/punct/inner).
• \text{…} and \mbox{…}: upright (regular-font) glyphs with word spacing; classified as ordinary atoms for correct inter-atom spacing at the boundary with adjacent math.
• Accents (\hat, \bar, \vec, \widehat, \widetilde, \overline, \underbrace, …).
• Font switching (\mathbf, \mathrm, \mathbb, \mathcal, \mathfrak, \mathtt, …).
• Array and matrix environments: matrix, pmatrix, bmatrix, Bmatrix, vmatrix, Vmatrix, smallmatrix, cases, and \begin{array}{colspec} with per-column l/c/r alignment and single/double vertical rules (| / ||).
• Mixed text-and-math document layout (layout_document): styled text (\textbf, \textit, \emph, \textrm, …), inline $…$ math, display-math environments (align, aligned, gather, equation), explicit line breaks (\\), and blank-line paragraph breaks, with configurable line and display spacing.
• Eight bundled font families, downloaded lazily via Julia Artifacts on first use.
• Lenient parser: never throws on ill-formed input; unknown commands produce inert NodeKind.Command leaf nodes that are silently skipped by the layout engine.
• Optional HarfBuzz-based text shaping (e.g., ligatures, character-pair spacing) when HarfBuzz_jll is loaded.

Makie integration

When both TeXLayout and MathTeXEngine are loaded in the same Julia session, TeXLayout automatically activates a package extension (MathTeXEngineExt) that replaces MathTeXEngine's layout engine with TeXLayout's. No other code changes are required — LaTeX strings passed to text! in CairoMakie or GLMakie are rendered using TeXLayout's OpenType-aware pipeline.

The extension routes each LaTeXString by shape: a single inline-math span ("$…$", the usual L"…" form) is laid out as one formula in Display style, as before; anything else — surrounding text, several $…$ spans, \(…\) inline math, or $$…$$ / \[…\] display math — goes through layout_document, so a single text! call can render mixed text and math. Width and alignment for that document path are controlled session-wide with set_default_layout_options! (e.g. set_default_layout_options!(width = 40.0, align = :center)).

using TeXLayout       # activates MathTeXEngineExt automatically
using CairoMakie, LaTeXStrings

fig = Figure()
ax  = Axis(fig[1,1])
text!(ax, 0.5, 0.5; text=L"\int_0^\infty e^{-x^2}\,dx = \frac{\sqrt{\pi}}{2}",
      fontsize=32, align=(:center, :center))
save("output.png", fig)

To use a different font for all math rendering (including via Makie), call set_default_font_family! before loading CairoMakie or GLMakie:

using TeXLayout
set_default_font_family!(:stix_two)   # or any other bundled symbol / FontFamily

using CairoMakie, LaTeXStrings
# All L"…" strings are now rendered with STIX Two Math.

For a consistent appearance, set Makie's text fonts to the same files that TeXLayout uses for math. default_font_family() returns the font paths for the active font family, so passing those paths to set_theme! makes axis labels, tick labels, and titles share the same typeface as the math rendering:

using TeXLayout, CairoMakie, LaTeXStrings

ff = default_font_family()   # whichever family is currently active

set_theme!(fonts = (;
    regular    = ff.regular,
    bold       = ff.bold,
    italic     = ff.italic,
    bolditalic = ff.bolditalic,
))

fig = Figure(size = (800, 500))
ax  = Axis(fig[1, 1]; xlabel = L"x", ylabel = L"f(x)")
x   = LinRange(0, 2π, 400)
lines!(ax, x, sin.(x); label = L"\sin(x)")
lines!(ax, x, exp.(-x/4).*sin.(3x); label = L"e^{-x/4}\sin(3x)")
axislegend(ax)
save("output.png", fig)

Note: The extension works by adding a specialised MathTeXEngine.generate_tex_elements(::LaTeXString) method from within a package that owns neither the function nor the argument type — a form of type piracy. This is pragmatic but not ideal. Alternative integration strategies that avoid type piracy (e.g. a dedicated Makie recipe or a proper upstream extension point) will be investigated in future.

Usage

using TeXLayout

# Lay out a formula with the default font (New Computer Modern Math).
boxes = generate_tex_elements(raw"\frac{1}{\sqrt{2}}")

# boxes is a Vector{LayoutBox}; each box carries:
#   .element  — a Glyph, GlyphID, HRule, VRule, or Space value
#   .x, .y    — baseline-relative position in em units
#   .scale    — font-size multiplier (1.0 for Display/Text, 0.7 for Script, …)

Choosing a font family

Eight bundled font families are available, downloaded lazily via Julia Artifacts on first use. Pass a FontFamily as the second argument to generate_tex_elements, or call set_default_font_family! once at start-up to change the default used by all subsequent calls (including the Makie extension):

# Select by symbol — font files are downloaded automatically on first use.
#   :new_cm    — New Computer Modern (default)
#   :pagella   — TeX Gyre Pagella (Palatino style)
#   :termes    — TeX Gyre Termes Math (Times style)
#   :schola    — TeX Gyre Schola Math (New Century Schoolbook style)
#   :bonum     — TeX Gyre Bonum Math (Bookman style)
#   :luciole   — Luciole Math (designed for low vision)
#   :stix_two  — STIX Two Math (Times style)
#   :fira_math — Fira Math + Fira Sans (sans-serif)

# Change the session-wide default (affects Makie integration too):
set_default_font_family!(:stix_two)

# Or pass a FontFamily explicitly for a single call:
family = font_family(:pagella)
boxes  = generate_tex_elements(raw"\int_0^\infty e^{-x}\,dx", family)

# Supply your own OpenType math font:
family = font_family("/path/to/MyMath.otf"; regular="/path/to/MyText.otf")

Lower-level pipeline

generate_tex_elements is a convenience wrapper. The individual pipeline stages are also exported for advanced use:

using TeXLayout

node  = parse_latex(raw"\sum_{k=0}^{n} k^2")  # → Node (AST)
boxes = layout(node, default_font_family(), TeXLayout.Display)  # → Vector{LayoutBox}

Pass shaper = HarfBuzzShaper() to layout or generate_tex_elements to shape text inside math \text{…} / \mbox{…} nodes when HarfBuzz_jll is loaded. For mixed text/math documents, pass the same shaper to layout_document:

using TeXLayout, HarfBuzz_jll

doc = layout_document("office \$x + \\text{affine}\$"; shaper = HarfBuzzShaper())

Mixed text and math

layout_document accepts a string mixing styled text, inline $…$ math, and display-math environments, and returns a TeXBox — a flat Vector{LayoutBox} together with the laid-out width, ascent, and descent:

using TeXLayout

doc = layout_document(raw"""
The Gaussian integral is $\int_{-\infty}^\infty e^{-x^2}\,dx = \sqrt{\pi}$.
We can \textbf{align} a derivation:
\begin{align}
  (a+b)^2 &= a^2 + 2ab + b^2 \\
          &= a^2 + b^2 + 2ab
\end{align}
""")

# doc.boxes is a Vector{LayoutBox}; doc.width / doc.ascent / doc.descent are em extents.

Layout is controlled with keyword arguments (forwarded to LayoutOptions): align, width, line_height, lineskip, display_align, abovedisplayskip, belowdisplayskip, parskip, and shaper. For example, layout_document(text; family = font_family(:stix_two), align = :center, width = 30.0).

API reference

The public API is intentionally small. All other names (lexer tokens, parser node kinds, style helpers, MATH-table types, glyph-metric functions) are accessible as TeXLayout.Xxx or via explicit using TeXLayout: name imports but are not exported.

Name	Kind	Description
FontFamily	type	Holds file paths for the math, regular, italic, bold, and bold-italic font roles
font_family	function	Construct a FontFamily from a symbol (:new_cm, :stix_two, …) or an OTF path
default_font_family	function	Return the current session-wide default FontFamily
set_default_font_family!	function	Override the session-wide default; accepts a Symbol or a FontFamily
TexStyle	enum type	The eight TeX style levels (TeXLayout.Display, TeXLayout.Text, …)
parse_latex	function	Tokenise and parse a LaTeX math string into a Node AST
layout	function	Lay out a Node into a Vector{LayoutBox} given a FontFamily and TexStyle
generate_tex_elements	function	Convenience: parse_latex + layout in one call
layout_document	function	Lay out mixed text/math input into a TeXBox; keyword options control spacing, alignment, width, and shaping
TeXBox	struct	Document layout result: .boxes, .width, .ascent, .descent
LayoutOptions	struct	Keyword-configurable options for layout_document
default_layout_options	function	Return the session-wide default LayoutOptions used by layout_document and the Makie extension
set_default_layout_options!	function	Override the session-wide default options (keyword form merges; positional LayoutOptions replaces)
TextShaper	abstract type	Interface for text shaping; default implementation is MetricShaper
MetricShaper	struct	Default metric-only text shaper (no contextual shaping)
HarfBuzzShaper	struct	Optional HarfBuzz-backed text shaper, active when HarfBuzz_jll is loaded
LayoutBox	struct	A positioned element: .element, .x, .y, .scale
TeXElement	abstract type	Base for Glyph, GlyphID, HRule, VRule, and Space
Glyph	struct	A single rendered glyph, identified by PostScript name and font role
GlyphID	struct	A single rendered glyph, identified by exact font path and glyph ID
HRule	struct	A horizontal rule (fraction bar, radical bar, …)
VRule	struct	A vertical rule (array column separator)
Space	struct	Explicit horizontal white space

Scope

TeXLayout typesets individual formulas and fixed text runs (with explicit line breaks via \\). Layout is single-pass: each call produces a measured, positioned result directly. The following are explicitly out of scope and will not be implemented:

• Automatic line breaking — wrapping or filling text/math to a target width.
• Justification and glue setting — stretchable/shrinkable spacing and the associated break-point optimisation.
• Iterative or incremental relayout — multi-pass layout optimisation, or re-flowing/caching previously laid-out content.
• Page and column breaking.
• Microtypography (protrusion, font expansion).

Acknowledgements

TeXLayout.jl draws heavily on the following prior work:

• KaTeX (MIT licence) — the primary reference for algorithm design, TeX style cascade rules, operator lists, and test cases. The screenshotter expressions in test/test_katex.jl are derived from KaTeX's ss_data.yaml, katex-spec.ts, and errors-spec.ts.
• MathTeXEngine.jl (MIT licence) — an earlier Julia implementation of LaTeX rendering for Makie; informed the overall architecture and the LayoutBox interface consumed by Makie's glyph collection.
• The TeXbook by Donald E. Knuth — the authoritative reference for TeX's box-and-glue model, style cascade, and atom spacing rules.
• OpenType MATH specification (part of the OpenType spec) — the source of truth for all metric constants (axis height, script shifts, fraction parameters, radical gaps, etc.).

Bundled fonts

All eight font families are redistributed under their respective open licences. Each tarball includes the relevant licence file.

Symbol	Font	Authors	Licence
:new_cm	New Computer Modern	Antonis Tsolomitis (University of the Aegean)	GUST Font Licence (LPPL 1.3c)
:pagella	TeX Gyre Pagella Math	Bogusław Jackowski, Janusz M. Nowacki, Piotr Strzelczyk (GUST e-foundry)	GUST Font Licence (LPPL 1.3c)
:luciole	Luciole	Daniel Flipo and typographies.fr, in collaboration with Centre de Ressources Handicap Visuel de Lyon; with support from DIPHE/Université Lumière Lyon 2, GUTenberg, Swiss Ceres Foundation, PEP69	Math font: SIL OFL 1.1; text fonts: CC-BY 4.0
:stix_two	STIX Two Math v2.0.2	The STIX Fonts Project Authors; STIX Fonts™ is a trademark of the Institute of Electrical and Electronics Engineers	SIL OFL 1.1 (Reserved Font Name "TM Math")
:fira_math	Fira Math v0.3.4 + Fira Sans	Fira Math: Xiangdong Zeng; Fira Sans: Mozilla and Telefonica S.A.	SIL OFL 1.1
:schola	TeX Gyre Schola Math	Bogusław Jackowski, Janusz M. Nowacki, Piotr Strzelczyk (GUST e-foundry)	GUST Font Licence (LPPL 1.3c)
:termes	TeX Gyre Termes Math	Bogusław Jackowski, Janusz M. Nowacki, Piotr Strzelczyk (GUST e-foundry)	GUST Font Licence (LPPL 1.3c)
:bonum	TeX Gyre Bonum Math	Bogusław Jackowski, Janusz M. Nowacki, Piotr Strzelczyk (GUST e-foundry)	GUST Font Licence (LPPL 1.3c)
