A complete from-scratch implementation of an English → Urdu Neural Machine Translation (NMT) system
using a Vanilla RNN Encoder–Decoder in PyTorch — no LSTMs, GRUs, or Attention.
- Overview
- Project Structure
- Model Architecture
- Setup & Execution
- Section 1 — Environment Setup
- Section 2 — Data Loading & Exploration
- Section 3 — Data Preprocessing
- Section 4 — Train / Val / Test Split
- Section 5 — Tokenisation & Vocabulary
- Section 6 — Batching & Padding
- Section 7 — Model Summary
- Section 8 — Training Dynamics
- Section 9 — Hyperparameter Grid Search
- Section 10 — Inference & BLEU Evaluation
- Section 11 — Error Analysis & Discussion
- Final Experiment Summary
- Generated Artifacts
This project implements the entire NMT pipeline from scratch, adhering strictly to the constraint of plain torch.nn.RNN only — no gating, no attention. The goal is to empirically quantify the architectural limitations of vanilla RNNs on a morphologically rich, verb-final (SOV) target language.
At a glance:
| Metric | Value |
|---|---|
| Dataset (after cleaning) | 8,542 pairs |
| English vocab | 3,821 tokens |
| Urdu vocab | 4,094 tokens |
| Total parameters | 4,914,942 (19.66 MB) |
| Best validation PPL | 41.34 @ epoch 10 |
| Greedy BLEU-1 / BLEU-4 | 21.03 / 0.90 |
| Beam-4 BLEU-1 / BLEU-4 | 12.47 / 0.96 |
| Dominant error | Complete Hallucination — 65.7% |
ENG-URDU-NMT-RNN/
├── data/
│ └── english_to_urdu_dataset.xlsx # Raw parallel corpus (9,103 pairs)
├── notebooks/
│ ├── dataset_statistics.ipynb # EDA, OOD & statistical analysis
│ └── english_to_urdu_nmt.ipynb # Full NMT pipeline (Sections 1–11)
├── outputs/
│ ├── checkpoints/
│ │ └── best_model.pt # Best checkpoint (epoch 10)
│ ├── plots/ # 11 evaluation figures (PNG)
│ └── results/ # CSV reports + pickled vocabularies
├── src/
│ └── english_to_urdu_nmt.py # Standalone Python script
├── LNCS_Report/ # Springer LNCS LaTeX report
├── images/
│ ├── 06a_rnn_encoder_decoder.png # Architecture diagram
│ └── 06b_context_vector.svg # Context vector SVG
├── architecture.mmd # Mermaid diagram source
├── requirements.txt
└── README.md

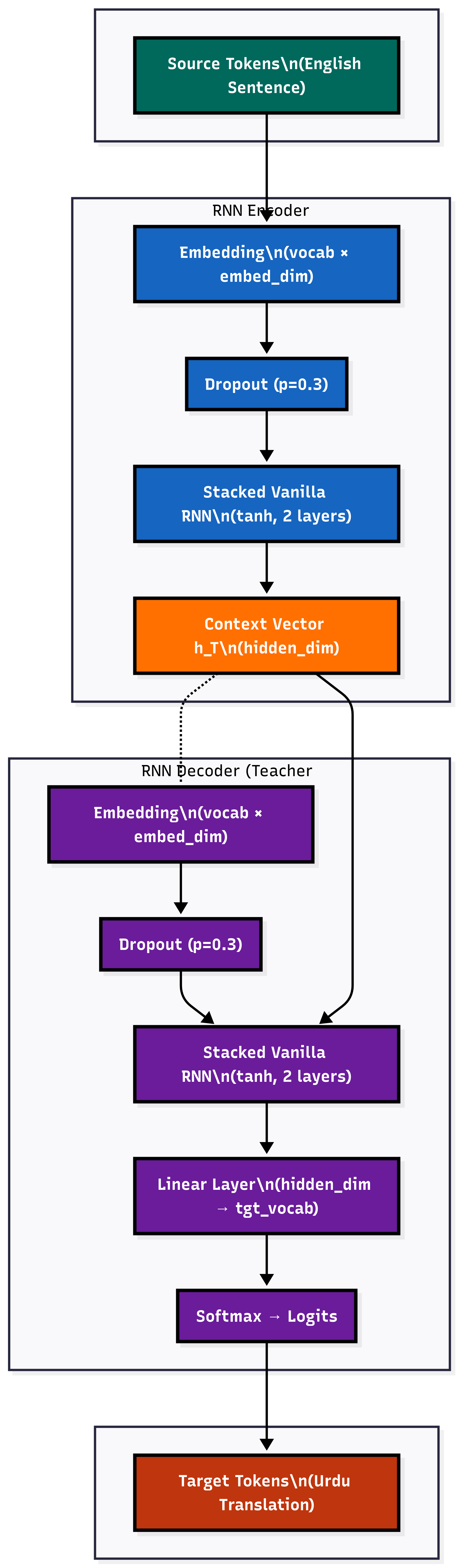

Vanilla RNN Encoder–Decoder. The encoder compresses the full English sentence into a single context vector h_T, which initialises the decoder to generate Urdu tokens one-by-one.
flowchart TD
subgraph ENC["🔷 RNN ENCODER"]
A([Source Tokens\nEnglish Sentence]):::input
B[Embedding\nvocab × embed_dim]:::blue
C[Dropout\np=0.2]:::blue
D[Vanilla RNN\ntanh · 1 layer · hidden=512]:::darkblue
E([Context Vector h_T\nshape: 1 × B × 512]):::orange
A --> B --> C --> D --> E
end
subgraph DEC["🔶 RNN DECODER — Teacher Forcing"]
F[Embedding\nvocab × embed_dim]:::purple
G[Dropout\np=0.2]:::purple
H[Vanilla RNN\ntanh · 1 layer · hidden=512]:::darkpurple
I[Linear 512 → tgt_vocab]:::purple
J([Target Tokens\nUrdu Sentence]):::output
F --> G --> H --> I --> J
end
E -->|"initialise\nhidden state"| H
classDef input fill:#1abc9c,stroke:#0e8c6a,color:#fff,font-weight:bold
classDef blue fill:#3498db,stroke:#1a6fa3,color:#fff
classDef darkblue fill:#2471a3,stroke:#1a5276,color:#fff,font-weight:bold
classDef orange fill:#e67e22,stroke:#b35a00,color:#fff,font-weight:bold
classDef purple fill:#9b59b6,stroke:#6c3483,color:#fff
classDef darkpurple fill:#7d3c98,stroke:#5b2c6f,color:#fff,font-weight:bold
classDef output fill:#e74c3c,stroke:#a93226,color:#fff,font-weight:bold
| Step | Component | Detail |
|---|---|---|
| 1 | Encoder Embedding | Maps each English token → 256-dim dense vector |
| 2 | Encoder RNN | h_t = tanh(W_ih·x_t + W_hh·h_{t-1} + b) — updates hidden state token-by-token |
| 3 | Context Vector | Final hidden state h_T (512-dim) — the only information passed to decoder |
| 4 | Decoder Embedding | Maps previous Urdu token → 256-dim vector |
| 5 | Decoder RNN | Conditioned on h_T, generates next hidden state |
| 6 | Output Projection | Linear 512 → 4094 + softmax → next Urdu token |
| Component | Parameters | Size (MB) |
|---|---|---|
| Encoder Embedding (3821 × 256) | 977,664 | 3.91 |
| Encoder RNN (1 layer) | 920,064 | 3.68 |
| Decoder Embedding (4094 × 256) | 1,048,064 | 4.19 |
| Decoder RNN (1 layer) | 920,064 | 3.68 |
| Output Projection (512 → 4094) | 2,096,382 | 8.39 |
| Total | 4,914,942 | 19.66 |
Output projection dominates at 42.7% of all parameters — a direct consequence of the large Urdu vocabulary.
# 1. Clone
git clone https://github.com/code-with-idrees/Machine_Translation_RNN.git
cd Machine_Translation_RNN
# 2. Virtual environment
python -m venv .venv
source .venv/bin/activate # Linux/macOS
# .venv\Scripts\activate # Windows
# 3. Install dependencies
pip install -r requirements.txt
# 4. Place dataset
# Put english_to_urdu_dataset.xlsx inside data/
# 5a. Run EDA notebook
jupyter notebook notebooks/dataset_statistics.ipynb
# 5b. Run full NMT pipeline
jupyter notebook notebooks/english_to_urdu_nmt.ipynb
# 5c. Or run as a script
python src/english_to_urdu_nmt.pyTested on NVIDIA Tesla T4 (15.64 GB VRAM) and RTX 4060 Laptop (8 GB). The pipeline auto-detects GPU and falls back to CPU.
All random seeds locked (SEED = 42) across PyTorch, NumPy, and Python for full deterministic reproducibility.
Python : 3.12.12 PyTorch : 2.10.0+cu128
NumPy : 2.0.2 Pandas : 2.2.2
Device : cuda GPU : Tesla T4
VRAM (GB) : 15.64 CUDA : 12.8
✅ Environment ready.
Shape : (9103, 2) | Columns : ['eng', 'urdu']
Pairs : 9,103 | Memory : 3.76 MB
Missing values → eng: 0, urdu: 1
Full duplicate rows : 9 (0.10%)
Raw corpus statistics:
| Metric | English | Urdu |
|---|---|---|
| Total tokens | 187,636 | 210,640 |
| Unique tokens | 7,156 | 8,111 |
| Type–token ratio | 0.0381 | 0.0385 |
| Mean length (tokens) | 20.61 | 23.14 |
| Std dev | 9.70 | 10.63 |
| Median length | 20 | 23 |
| Max length | 68 | 84 |
| Mean length ratio (Urdu/Eng) | 1.161 ± 0.268 |
Top-15 English tokens: the (11180) · and (10750) · of (6167) · that (3820) · to (3581) · he (3108) · in (2990) · him (2484) · unto (2447) · for (2321) · is (2261) · i (2185) · not (2101) · a (2062) · they (1969)
Top-15 Urdu tokens: ۔ (9633) · اور (8698) · کے (6324) · سے (6022) · میں (5853) · اس (5691) · کی (4224) · ہے (4214) · نے (3946) · کو (3702) · کہ (3562) · وہ (2790) · تو (2320) · کا (2234) · جو (2153)

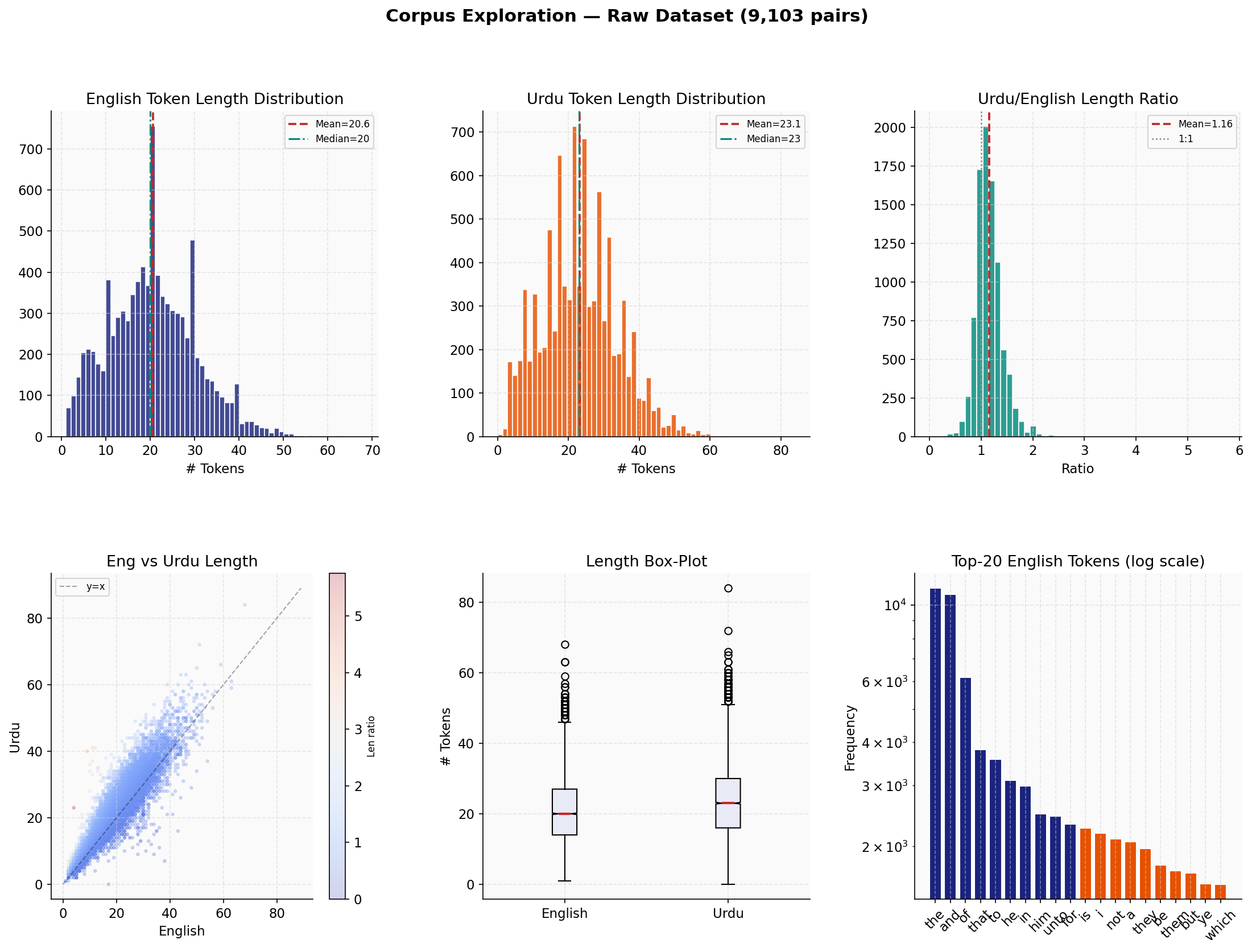

What this shows: English and Urdu sentence-length histograms; Urdu/English length-ratio distribution; scatter of Eng vs Urdu lengths coloured by ratio; length box-plots; top-20 English token frequency bar chart (log scale).
Two dedicated cleaning pipelines are applied before any filtering.
English pipeline: Lowercasing → URL/email stripping → Unicode NFKC normalisation → repeated-punctuation collapsing → whitespace normalisation.
Urdu pipeline:
Urdu punctuation mapping (۔→. · ،→, · ؟→?) → zero-width character removal → bracketed annotation stripping → Urdu-script ratio check.
Sequential quality filters:
| Filter | Rows Removed | Reason |
|---|---|---|
| Null removal | −19 | Empty after cleaning |
| Exact deduplication | −9 | Full duplicate rows |
| Urdu script ratio < 40% | −1 | Non-Urdu content |
| Length cap at 97th pct (≤40 / ≤44 tokens) | −361 | GPU-memory outliers |
| Length-ratio filter [0.67 – 2.20] | −171 | Extreme length asymmetry |
| Final corpus | 8,542 pairs | 93.8% retained |
97th pct English length : 40 tokens
97th pct Urdu length : 44 tokens
Ratio bounds : [0.67 , 2.20]
💾 Saved: outputs/results/cleaned_dataset.csv
5 cleaned samples:
ENG : they say unto him why did moses then command to give a writing of divorcement
URDU: انہوں نے اس سے کہا پھر موسی نے کیوں حکم دیا ہے کہ طلاقنامہ دے کر چھوڑ دی جائے
ENG : tom can fix the heater.
URDU: ٹام ہیٹر ٹھیک کر سکتا ہے.
ENG : my mother has made me what i am today.
URDU: میں آج جو کچھ ہوں, اپنی ماں کی وجہ سے ہوں.

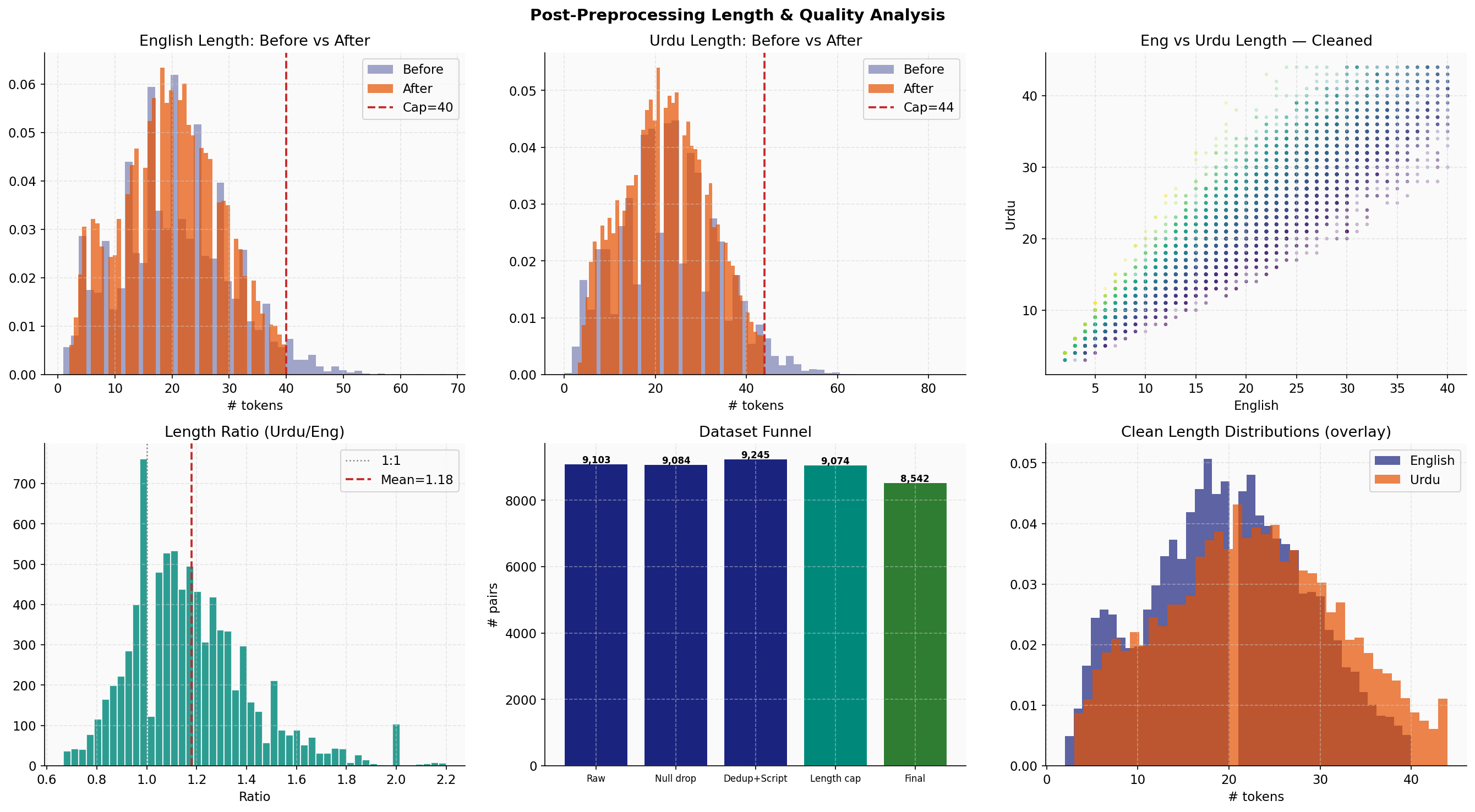

What this shows: English/Urdu length distributions before and after filtering; Urdu script-ratio histogram with the 40% threshold line; cleaned length-ratio histogram; Eng vs Urdu length scatter coloured by script ratio; dataset-size funnel tracking rows removed at each filter stage.
Stratified split on 5 quantile bins of source-sentence length. Fixed random_state = 42. Zero overlap verified programmatically after splitting.
| Split | Pairs | % | Eng μ ± σ | Urdu μ ± σ |
|---|---|---|---|---|
| Train | 6,823 | 79.9% | 19.9 ± 8.6 | 22.5 ± 9.3 |
| Validation | 864 | 10.1% | 19.7 ± 8.7 | 22.4 ± 9.5 |
| Test | 855 | 10.0% | 19.7 ± 8.6 | 22.4 ± 9.2 |
Overlap Train ∩ Val : 0 ✅
Overlap Train ∩ Test : 0 ✅
Overlap Val ∩ Test : 0 ✅
✅ Zero data leakage confirmed across all three splits.

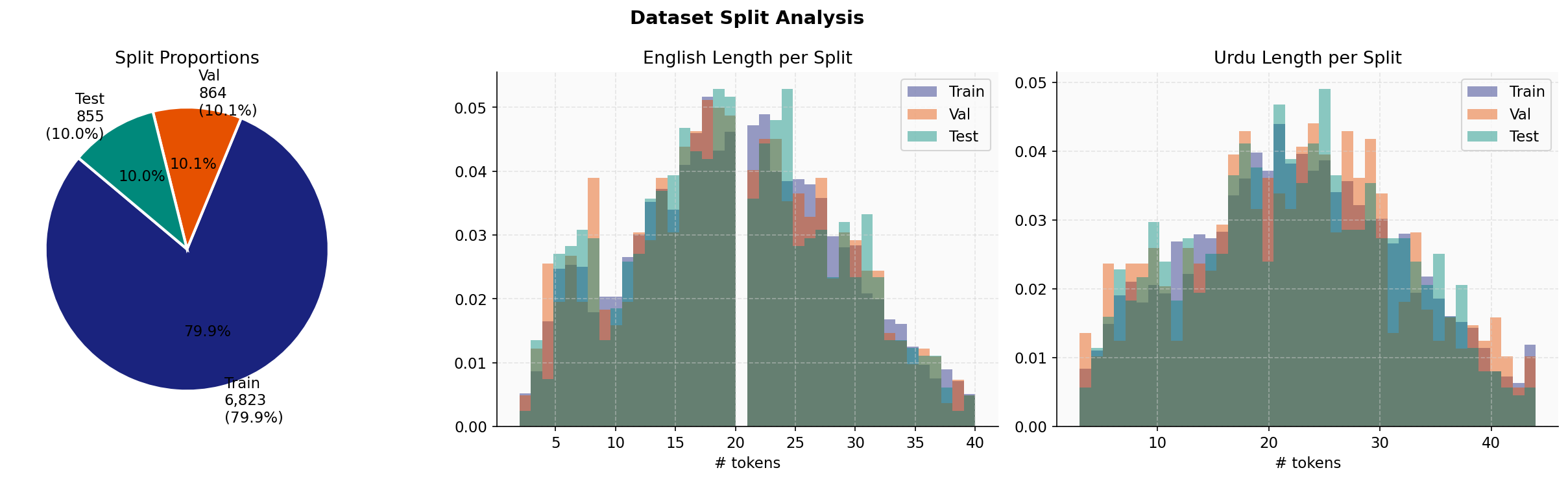

What this shows: Proportions pie chart; English token-length density per split; Urdu token-length density per split. All three distributions are near-identical, confirming successful stratification.
Word-level tokenisation (whitespace split after normalisation). Vocabularies built from training set only (min_freq = 2) to prevent leakage.
Special tokens:
| Token | Index | Role |
|---|---|---|
<pad> |
0 | Sequence padding |
<bos> |
1 | Begin-of-sentence (decoder input start) |
<eos> |
2 | End-of-sentence (generation stop) |
<unk> |
3 | Out-of-vocabulary token |
English (source) vocab size : 3,821 (singletons excluded: 2,372)
Urdu (target) vocab size : 4,094 (singletons excluded: 2,869)
Min frequency threshold : 2
OOV analysis:
| Split | ENG OOV tokens | ENG OOV rate | URDU OOV tokens | URDU OOV rate |
|---|---|---|---|---|
| Validation | 582 / 16,993 | 3.42% | 666 / 19,334 | 3.44% |
| Test | 564 / 16,846 | 3.35% | 613 / 19,112 | 3.21% |
Top OOV (val ENG): college (5) · train (4) · wherever (4) · want. (4) · diseases (3)

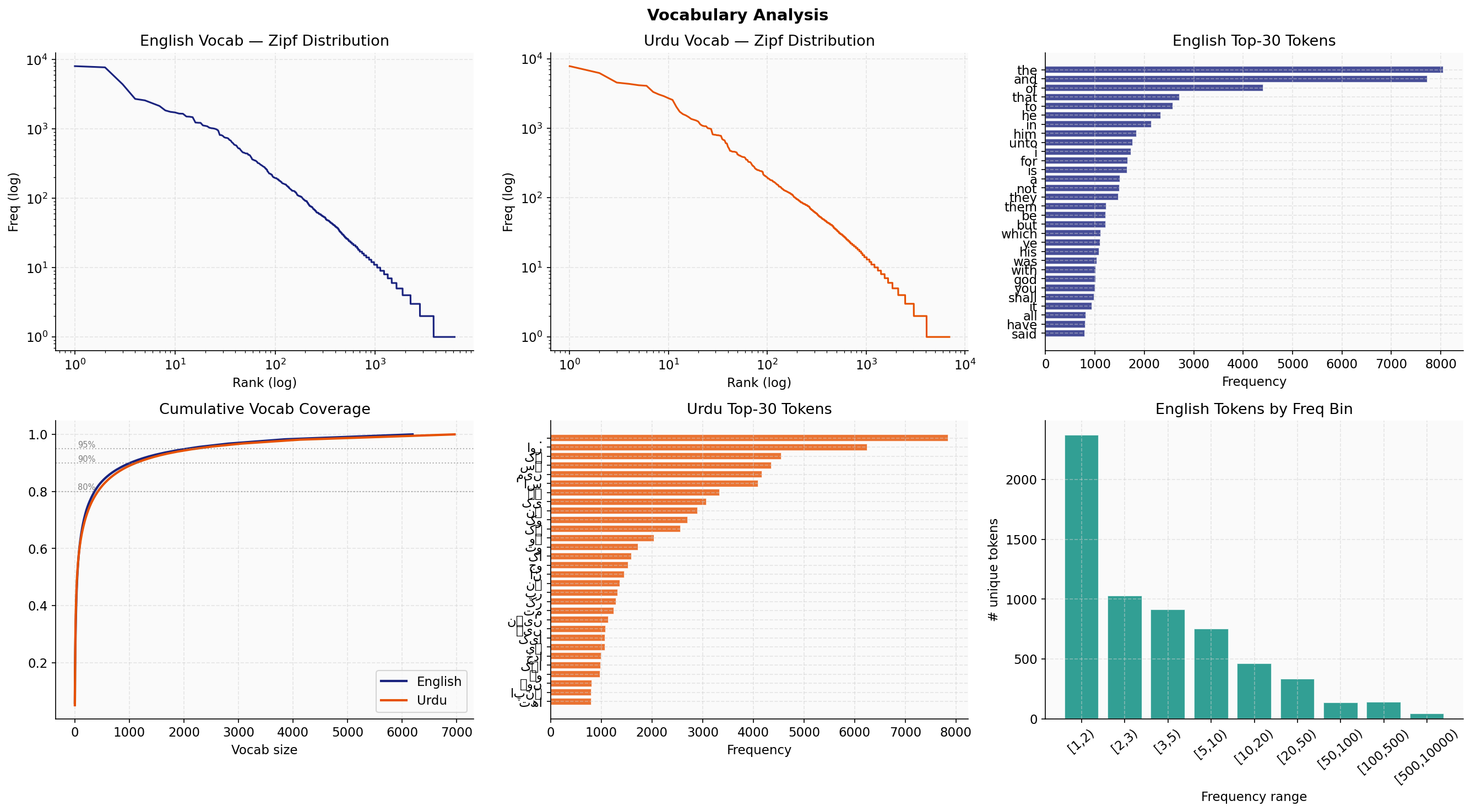

What this shows: Zipf distributions (log–log scale) for both vocabularies; top-30 token bar charts (English & Urdu); cumulative coverage curves with 80 / 90 / 95% markers; English token frequency-bin histogram showing the long tail of singletons.
- Source: Each English sentence encoded with terminal
<eos>. - Target: Urdu sentences bookended with
<bos>and<eos>. Decoder input (tgt_in) is right-shifted; labels (tgt_out) are left-shifted. - Padding: Dynamic — sequences padded to the batch maximum length, not a global maximum. This significantly reduces wasted computation.
Train batches : 107 | Val batches : 14 | Test batches : 14
Batch size : 64
src shape : torch.Size([64, 39]) → src padding ratio : 48.9%
tgt_in shape : torch.Size([64, 45]) → tgt_in padding ratio : 49.1%
tgt_out shape : torch.Size([64, 45])
Teacher-forcing check:
tgt_in first token = BOS (1) ✅
tgt_out last token = EOS (2) or <pad> ✅

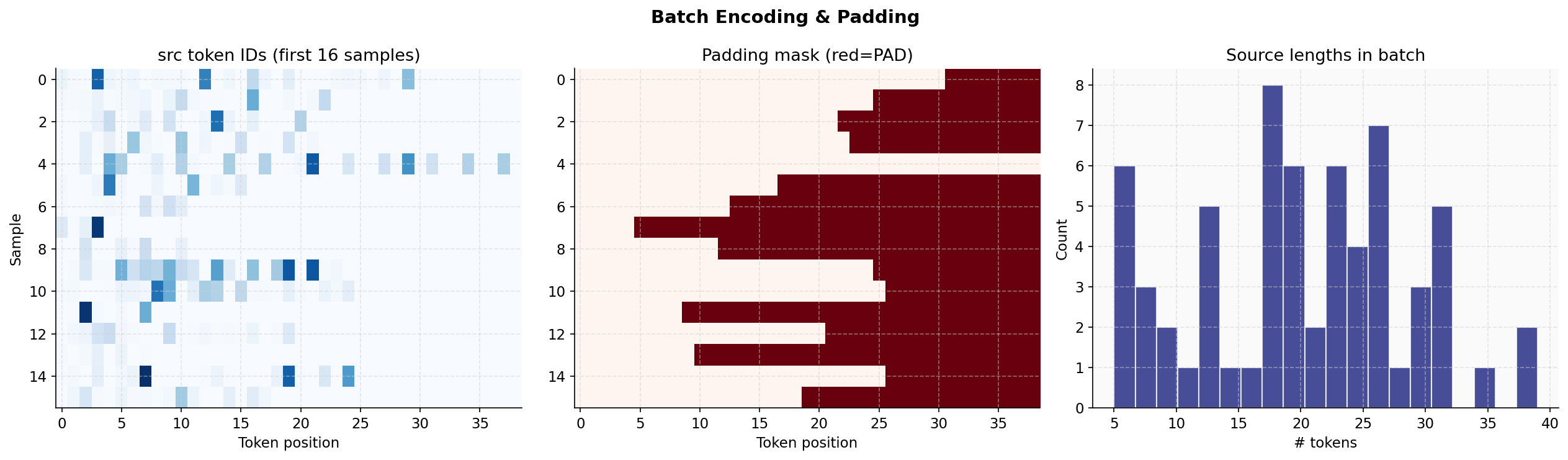

What this shows: Source token-ID heatmap (first 16 samples in a batch); padding mask visualisation (red cells =
<pad>positions); source sequence length histogram within the batch.
Seq2Seq(
(encoder): RNNEncoder(
(embedding): Embedding(3821, 256, padding_idx=0)
(dropout): Dropout(p=0.2, inplace=False)
(rnn): RNN(256, 512, num_layers=1, batch_first=True)
)
(decoder): RNNDecoder(
(embedding): Embedding(4094, 256, padding_idx=0)
(dropout): Dropout(p=0.2, inplace=False)
(rnn): RNN(256, 512, num_layers=1, batch_first=True)
(fc_out): Linear(in_features=512, out_features=4094, bias=True)
)
)
Encoder parameters : 1,897,728
Decoder parameters : 3,017,214
Total parameters : 4,914,942 (19.66 MB · float32)
Device : cuda:0
Forward pass sanity check:
Input src : (4, 12)
Input tgt_in : (4, 10)
Output logits : (4, 10, 4094) ✅
What this shows: Pie chart of parameter share per component; horizontal bar chart with absolute parameter counts per layer. The output projection dominates at 42.7% owing to the large Urdu vocabulary.
Configuration:
| Setting | Value |
|---|---|
| Loss function | Label-smoothed cross-entropy (ε = 0.1) |
| Optimizer | Adam (β₁=0.9, β₂=0.98, ε=1e-8) |
| Gradient clipping | L2 norm ≤ 1.0 |
| LR scheduler | ReduceLROnPlateau (factor=0.5, patience=3) |
| Early stopping | patience = 7 epochs |
| Max epochs | 30 |
Full 17-epoch training log (best config, retrained):
Epoch │ Train Loss │ Val Loss │ Val PPL │ LR │ Time
─────────────────────────────────────────────────────────────────
1 │ 5.1460 │ 4.7228 │ 112.48 │ 1.00e-03 │ 2.8s ← BEST ✓
2 │ 4.4642 │ 4.2117 │ 67.47 │ 1.00e-03 │ 2.6s ← BEST ✓
3 │ 4.1100 │ 4.0237 │ 55.90 │ 1.00e-03 │ 2.6s ← BEST ✓
4 │ 3.8972 │ 3.9067 │ 49.73 │ 1.00e-03 │ 2.6s ← BEST ✓
5 │ 3.7202 │ 3.8362 │ 46.35 │ 1.00e-03 │ 2.6s ← BEST ✓
6 │ 3.5698 │ 3.7910 │ 44.30 │ 1.00e-03 │ 2.7s ← BEST ✓
7 │ 3.4349 │ 3.7641 │ 43.12 │ 1.00e-03 │ 2.6s ← BEST ✓
8 │ 3.3140 │ 3.7371 │ 41.98 │ 1.00e-03 │ 2.6s ← BEST ✓
9 │ 3.1974 │ 3.7295 │ 41.66 │ 1.00e-03 │ 2.6s ← BEST ✓
★ 10 │ 3.0917 │ 3.7217 │ 41.34 │ 1.00e-03 │ 2.7s ← BEST ✓ ← SAVED
11 │ 2.9902 │ 3.7284 │ 41.61 │ 1.00e-03 │ 2.6s
12 │ 2.8940 │ 3.7319 │ 41.76 │ 1.00e-03 │ 2.6s
13 │ 2.8034 │ 3.7417 │ 42.17 │ 1.00e-03 │ 2.6s
14 │ 2.7160 │ 3.7436 │ 42.25 │ 1.00e-03 │ 2.6s
15 │ 2.5652 │ 3.7408 │ 42.13 │ 5.00e-04 │ 2.8s ← LR halved
16 │ 2.5134 │ 3.7495 │ 42.50 │ 5.00e-04 │ 2.6s
17 │ 2.4694 │ 3.7549 │ 42.73 │ 5.00e-04 │ 2.6s
⏹ Early stopping triggered at epoch 17.
✅ Best epoch : 10 | Best val loss : 3.7217 | Best val PPL : 41.34
⚠️ Generalisation gap at best epoch : 0.63 (moderate overfitting)
Key observations:
- Training loss drops monotonically from 5.15 → 2.47 over 17 epochs.
- Validation loss reaches minimum 3.7217 at epoch 10, then plateaus — classic bottleneck saturation.
- LR halved once at epoch 15 via ReduceLROnPlateau but yields no further improvement.
- Gradient norms remain below the 1.0 clip threshold throughout — stable training.

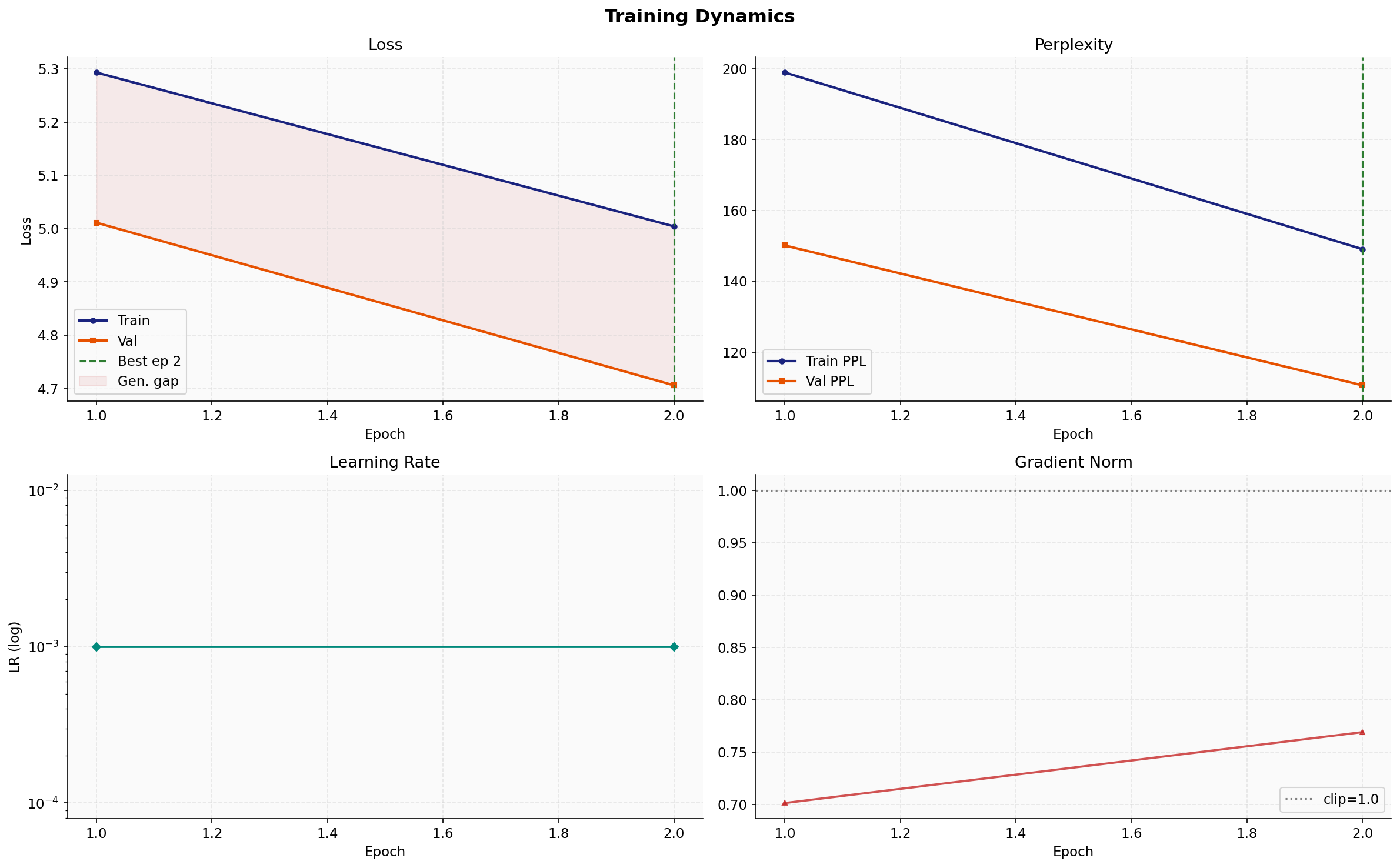

What this shows: Train vs validation loss curves with generalisation-gap shading and best-epoch marker; perplexity curves; LR schedule; gradient L2 norm per epoch.
8 configurations × 8 epochs each. Search space: embedding dim · hidden dim · RNN layers · learning rate · dropout · batch size.
Full grid search leaderboard:
| Rank | Emb | Hid | L | LR | Drop | BS | Val Loss | Val PPL | Params |
|---|---|---|---|---|---|---|---|---|---|
| 🥇 1 | 256 | 512 | 1 | 1e-3 | 0.2 | 64 | 3.735 | 41.89 | 4,914,942 |
| 2 | 256 | 256 | 1 | 1e-3 | 0.2 | 64 | 3.741 | 42.13 | 3,341,566 |
| 3 | 256 | 512 | 2 | 1e-3 | 0.2 | 64 | 3.809 | 45.09 | 5,965,566 |
| 4 | 128 | 256 | 1 | 1e-3 | 0.2 | 64 | 3.829 | 46.00 | 2,262,910 |
| 5 | 128 | 512 | 1 | 1e-3 | 0.2 | 64 | 3.834 | 46.23 | 3,770,750 |
| 6 | 256 | 512 | 2 | 1e-3 | 0.3 | 32 | 3.836 | 46.35 | 5,965,566 |
| 7 | 256 | 512 | 2 | 1e-3 | 0.3 | 64 | 3.894 | 49.10 | 5,965,566 |
| 8 | 256 | 512 | 2 | 5e-4 | 0.2 | 64 | 3.913 | 50.06 | 5,965,566 |
Optimal hyperparameter configuration:
| Hyperparameter | Search Range | ✅ Optimal |
|---|---|---|
| Embedding Dimension | {128, 256} | 256 |
| Hidden Dimension | {256, 512} | 512 |
| RNN Layers | {1, 2} | 1 |
| Learning Rate | {5e-4, 1e-3} | 1e-3 |
| Dropout | {0.2, 0.3} | 0.2 |
| Batch Size | {32, 64} | 64 |
Key insight: 1-layer RNN (rank 1) beats 2-layer (rank 3) — added depth creates more vanishing-gradient pathways without providing the gating benefit of LSTM/GRU.
What this shows: Ranked validation loss bar chart; parameter count vs validation loss scatter; validation loss curves for all 8 configs across 8 epochs; per-hyperparameter effect bar charts (embedding dim, RNN layers); time–performance trade-off coloured by parameter count.
Best checkpoint (epoch 10, val loss = 3.7217) evaluated on all 855 test sentences.
Decoding methods:
| Method | Strategy | Avg Speed |
|---|---|---|
| Greedy | argmax at every step |
19.7 ms / sent |
| Beam (k=4) | Length-normalised log-prob, α = 0.7 | 136.5 ms / sent (6.9× slower) |
BLEU scores on test set (855 sentences, Chen–Cherry smoothing):
| Decoding Method | BLEU-1 | BLEU-2 | BLEU-3 | BLEU-4 |
|---|---|---|---|---|
| Greedy | 21.026 | 7.420 | 2.573 | 0.903 |
| Beam (k=4) | 12.470 | 4.232 | 1.830 | 0.957 |
Sentence-level: Greedy 2.31 ± 1.39 · Beam-4 1.79 ± 2.04
Greedy achieves higher BLEU-1/2; beam-4 marginally improves BLEU-4 at 6.9× latency cost.
OOD robustness (> 31 tokens or ≥ 2 OOV tokens):
| Condition | n | BLEU-1 | BLEU-2 | BLEU-3 | BLEU-4 |
|---|---|---|---|---|---|
| In-Distribution | 655 | 13.373 | 4.678 | 2.018 | 1.015 |
| OOD | 200 | 9.732 | 3.210 | 1.411 | 0.739 |
| Drop | −3.641 | −1.468 | −0.607 | −0.276 | |
| Relative drop | −27.2% | −31.4% | −30.1% | −27.2% |
Decoding demo (5 samples):
[1] SRC : and solomon begat roboam and roboam begat abia and abia begat asa
REF : اور سلیمان سے رحبعام پیدا ہوا اور رحبعام سے ابیاہ پیدا ہوا اور ابیاہ سے آسا پیدا ہوا
BM4 : اس نے ان سے کہا اے خداوند میں تجھ سے کہتا ہوں .
[2] SRC : blessed are the poor in spirit for theirs is the kingdom of heaven
REF : مبارک ہیں وہ جو دل کے غریب ہیں کیونکہ آسمان کی بادشاہی ان ہی کی ہے .
BM4 : اس نے ان سے کہا اے خداوند میں تجھ سے کہتا ہوں .
[3] SRC : he saith unto them but whom say ye that i am
REF : اس نے ان سے کہا مگر تم مجھے کیا کہتے ہو
BM4 : اس نے ان سے کہا اے خداوند میں تجھ سے کہتا ہوں . ← BLEU 28.92 (best)

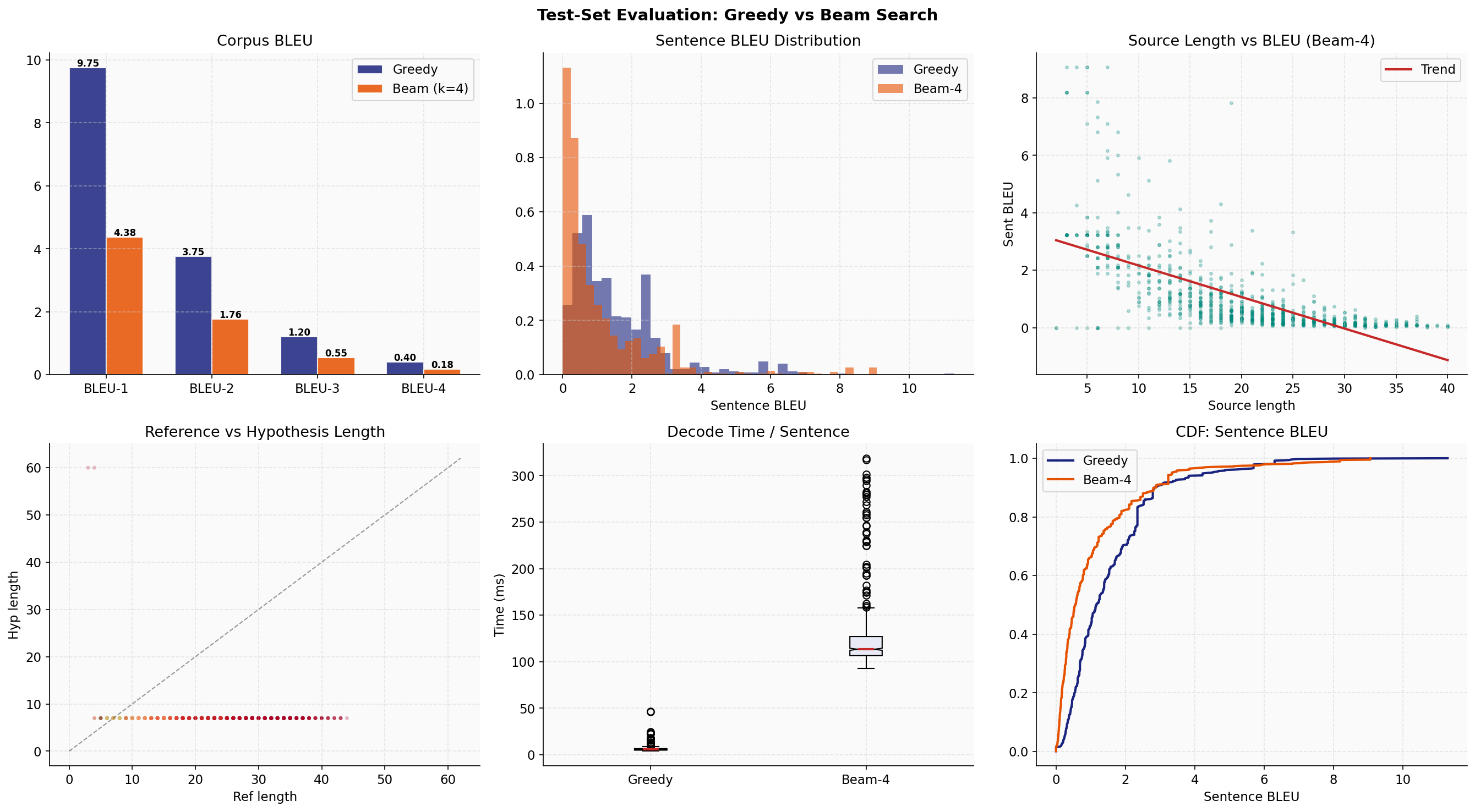

What this shows: Corpus BLEU-1 to BLEU-4 grouped bar (greedy vs beam-4); sentence BLEU density distribution; source length vs sentence BLEU scatter with trend line; reference vs hypothesis length; decoding latency box-plots; sentence BLEU CDF for both methods.
All 855 beam-4 outputs classified into 8 error categories using automated heuristics validated by manual inspection of 50 samples.
Error type distribution:
| Error Type | Count | % | Definition |
|---|---|---|---|
| 🔴 Complete Hallucination | 562 | 65.7% | Zero lexical overlap with reference |
| 🟠 Partial Match | 251 | 29.4% | Some content correct but incomplete |
| 🟡 Severe Over-generation | 23 | 2.7% | Hypothesis > 200% reference length |
| 🟢 Near Miss | 7 | 0.8% | High overlap, minor lexical errors |
| 🔵 Poor Reordering | 7 | 0.8% | Correct vocab, wrong word order |
| ✅ Acceptable (BLEU ≥ 20) | 2 | 0.2% | Reasonably correct |
| 🔁 Repetition Loop | 2 | 0.2% | Decoder stuck in same-token loop |
| ⬇️ Severe Under-generation | 1 | 0.1% | Hypothesis < 30% reference length |
🚨 Dominant failure — Fixed-Phrase Mode Collapse (65.7%)
Nearly two-thirds of all outputs collapse to a single fixed phrase:
اس نے ان سے کہا اے خداوند میں تجھ سے کہتا ہوں . (He said to them, O Lord, I say to thee.)
This is the maximum-likelihood degenerate solution when the context vector h_T carries insufficient discriminative signal for the decoder to distinguish between inputs. It is a canonical symptom of the fixed-size bottleneck in non-attentive models.
Top-5 best translations (Beam-4):
| # | English Source | BLEU | Label |
|---|---|---|---|
| 1 | he saith unto them but whom say ye that i am | 28.92 | Acceptable |
| 2 | and after that they durst not ask him any question at all | 24.79 | Acceptable |
| 3 | but i have prayed for thee that thy faith fail not | 16.96 | Near Miss |
| 4 | philip saith unto him lord shew us the father | 16.35 | Near Miss |
| 5 | and they brought it and he saith unto them | 13.50 | Near Miss |
Limitations of vanilla RNNs — quantified:
| Limitation | Root Cause | Empirical Evidence |
|---|---|---|
| Vanishing gradients | tanh shrinks ∂h/∂h exponentially with sequence depth |
Val loss plateaus hard at epoch 10 |
| Information bottleneck | Entire sentence → single 512-D vector h_T |
65.7% mode-collapse; −27.2% OOD BLEU-4 |
| Poor word-order reordering | No attention to re-access source positions | "Poor Reordering" error class |
| Repetition / degeneration | No coverage mechanism | Repetition Loop errors |
| OOV sensitivity | Word-level vocab; rare tokens → <unk> |
−31.4% OOD BLEU-2 drop |
Future improvement roadmap:
| Priority | Improvement | Expected Gain |
|---|---|---|
| 🔴 Immediate | LSTM / GRU cells | Address vanishing gradients |
| 🔴 Immediate | Bidirectional encoder | Richer context representations |
| 🔴 Immediate | Bahdanau attention | Eliminate bottleneck entirely |
| 🔴 Immediate | BPE / SentencePiece | Cut OOV rate to < 1% |
| 🟡 Medium | Full Transformer | State-of-the-art architecture |
| 🟡 Medium | Fine-tune mBART-50 | Cross-lingual transfer learning |
| 🟢 Long-term | Back-translation | More diverse training data |
| 🟢 Long-term | Broader Urdu corpus | Beyond biblical domain bias |

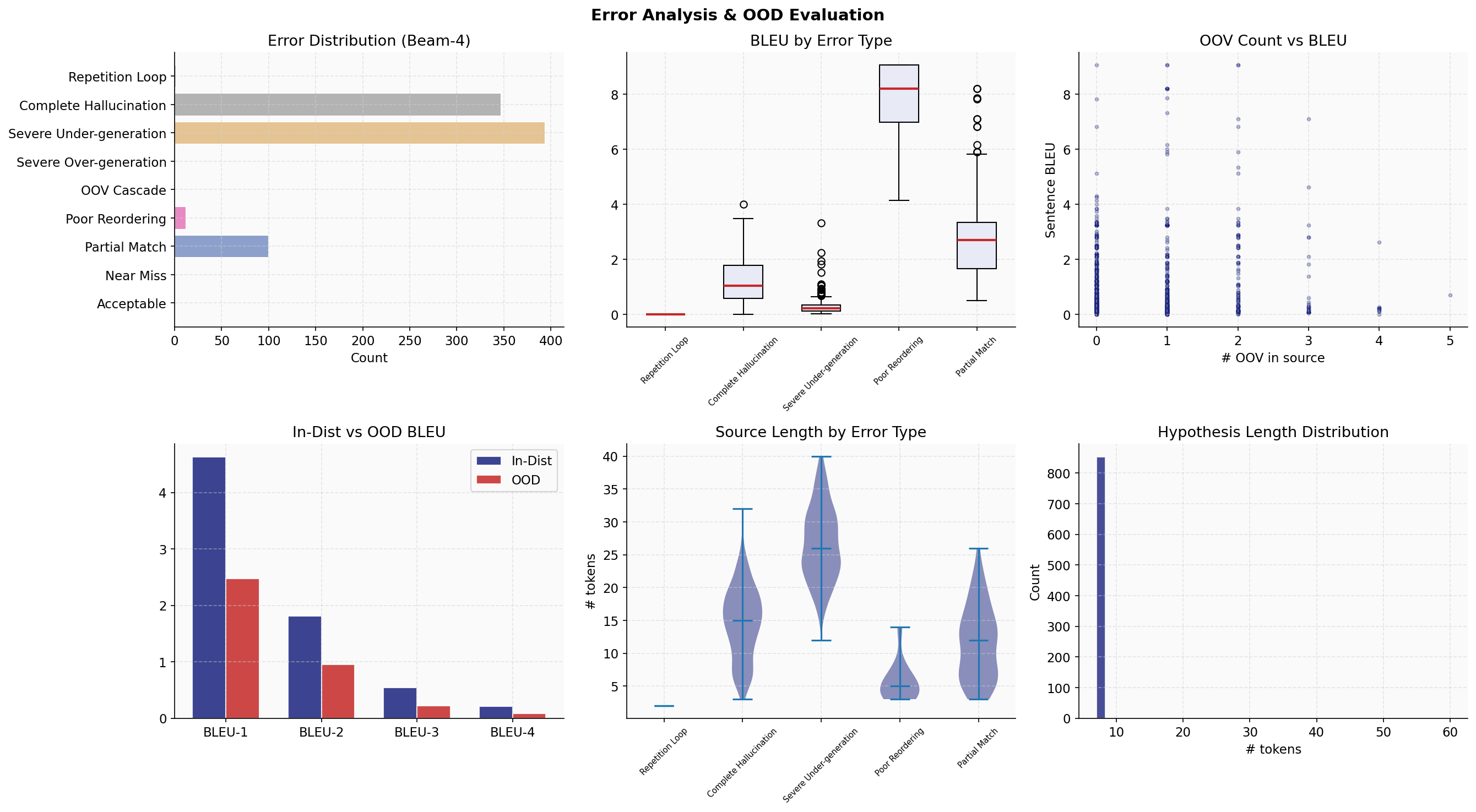

What this shows: Error type distribution bar chart; sentence BLEU box-plots per error category; OOV count vs sentence BLEU scatter; ID vs OOD BLEU-4 comparison bars; source-length violin plots by error type; hypothesis-length distributions for top-4 error categories.
╔══════════════════════════════ FINAL EXPERIMENT SUMMARY ═══════════════════════╗
── DATASET ───────────────────────────────────────────────────────────────────
Raw sentence pairs : 9,103
After all cleaning & filtering : 8,542 (93.8% retention)
Train / Val / Test : 6,823 / 864 / 855
── VOCABULARY ────────────────────────────────────────────────────────────────
English vocab size : 3,821
Urdu vocab size : 4,094
Min token frequency : 2
Val OOV rate (ENG / URDU) : 3.42% / 3.44%
── MODEL ─────────────────────────────────────────────────────────────────────
Architecture : Vanilla RNN Encoder-Decoder (tanh)
Embedding dim / Hidden dim / Layers : 256 / 512 / 1
Dropout / Label smoothing : 0.2 / 0.1
Total parameters : 4,914,942
Model size (MB) : 19.66
── TRAINING ──────────────────────────────────────────────────────────────────
Epochs trained / Best epoch : 17 / 10
Best val loss / PPL : 3.7217 / 41.34
Final train loss : 2.4694
Generalization gap : 0.6300
── TEST SET EVALUATION ───────────────────────────────────────────────────────
Greedy BLEU-1 / BLEU-4 : 21.026 / 0.903
Beam-4 BLEU-1 / BLEU-4 : 12.470 / 0.957
Beam-4 avg decode time (ms/sent) : 136.5
── OOD EVALUATION ────────────────────────────────────────────────────────────
ID BLEU-4 (beam-4) : 1.015
OOD BLEU-4 (beam-4) : 0.739
Relative degradation : −27.2%
── ERROR ANALYSIS ────────────────────────────────────────────────────────────
Most common error : Complete Hallucination (65.7%)
Acceptable translations : 0.2% (2 / 855)
╚══════════════════════════════════════════════════════════════════════════════╝

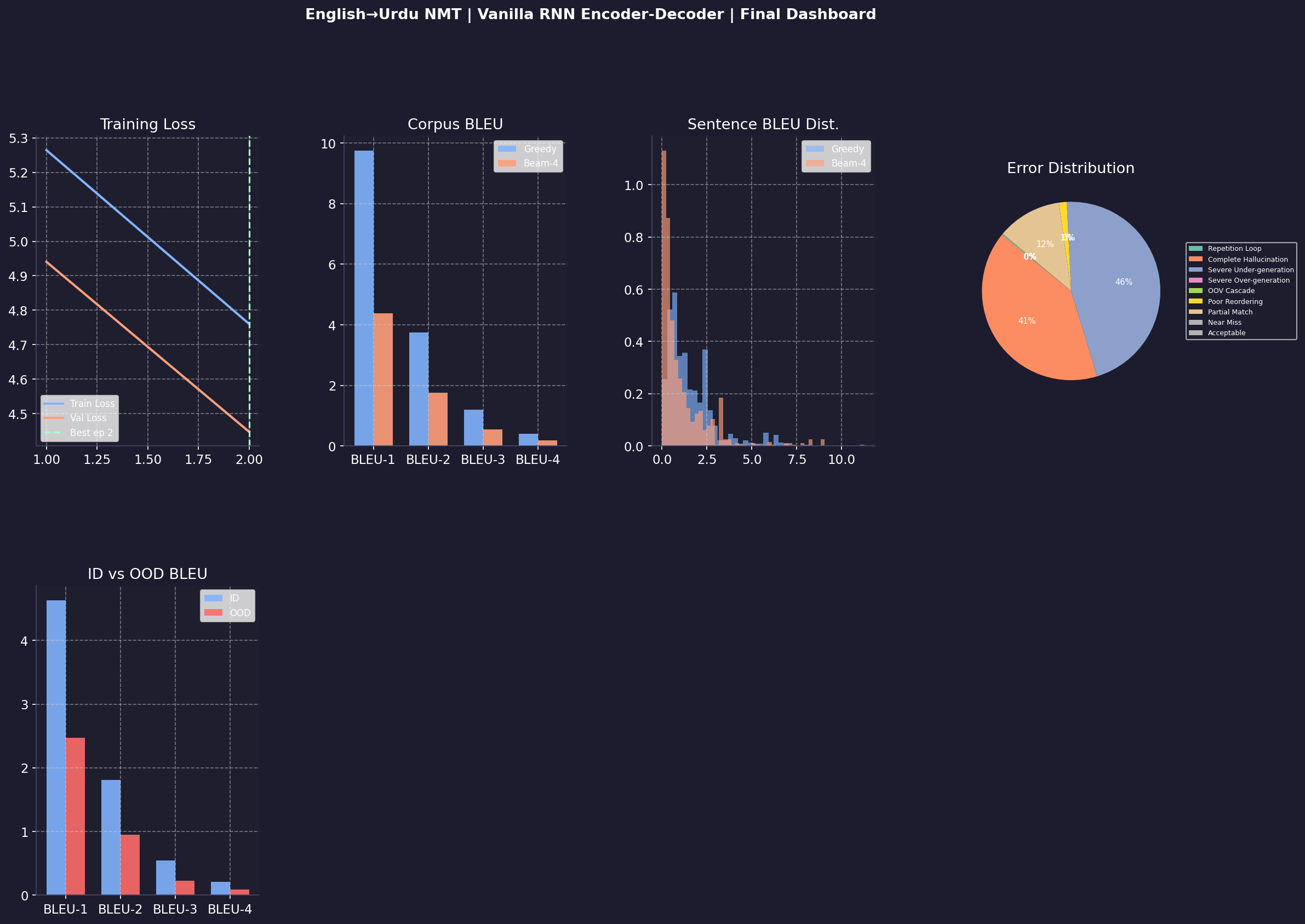

What this shows: 4-panel consolidated dashboard — train/val loss curves with best-epoch marker; corpus BLEU-1 to BLEU-4 for greedy and beam-4; sentence BLEU density distribution; error-type pie chart.
outputs/plots/ — 11 PNG figures auto-generated by the notebook
| File | Description |
|---|---|
01_corpus_exploration.png |
Length histograms, top-token frequencies |
02_preprocessing_analysis.png |
Filter funnel, script-ratio analysis |
03_dataset_split.png |
Split proportions, length densities |
04_vocabulary_analysis.png |
Zipf curves, top-30 tokens |
05_batch_structure.png |
Token-ID heatmap, padding mask |
06_model_architecture.png |
Parameter breakdown |
07_training_dynamics.png |
Loss/PPL/LR/grad-norm curves |
08_hyperparameter_search.png |
Grid search leaderboard & curves |
09_bleu_evaluation.png |
BLEU bars, scatter, CDF, latency |
10_error_analysis.png |
Error taxonomy, OOD comparison |
11_final_dashboard.png |
Consolidated 4-panel summary |
outputs/results/ — CSV reports & pickled objects
| File | Description |
|---|---|
cleaned_dataset.csv |
8,542 preprocessed pairs |
train_split.csv / val_split.csv / test_split.csv |
Split CSVs |
src_vocab.pkl / tgt_vocab.pkl |
Pickled vocabulary objects |
training_history.csv |
Per-epoch train loss, val loss, PPL, LR |
grid_search_results.csv |
Full grid search leaderboard |
hyperparameter_summary.csv |
Optimal config table |
bleu_scores.csv |
Corpus BLEU-1 through BLEU-4 |
translation_examples.csv |
Per-sentence BLEU + decoded outputs |
error_analysis.csv |
Error category per test sentence |
final_summary.csv |
All key metrics in one CSV |
outputs/checkpoints/
| File | Description |
|---|---|
best_model.pt |
Best checkpoint — epoch 10, val loss = 3.7217 |
LNCS_Report/ — Final Springer LNCS LaTeX report
| File | Description |
|---|---|
report.tex |
LaTeX source code for the empirical report |
English_Urdu_NMT_RNN_LNCS_Report.pdf |
Final compiled PDF with all findings |
@misc{idrees2024engurdu,
title = {English--Urdu Neural Machine Translation Using a Vanilla RNN Encoder--Decoder},
author = {Muhammad Idrees},
year = {2024},
school = {FAST-NUCES Islamabad},
note = {Generative AI Assignment \#1}
}
Built at FAST-NUCES Islamabad · Department of Computer Science
github.com/code-with-idrees/Machine_Translation_RNN
