ImGui DirectX11 Base

C++ DLL template for DirectX 11 overlays using ImGui, MinHook, and mINI.

Hooks the swap chain (Present + ResizeBuffers), waits for d3d11.dll / dxgi.dll before installing hooks, and rebinds the device after resolution changes or graphics reloads.

Controls

Key	Action
INSERT	Toggle menu
END	Unload DLL

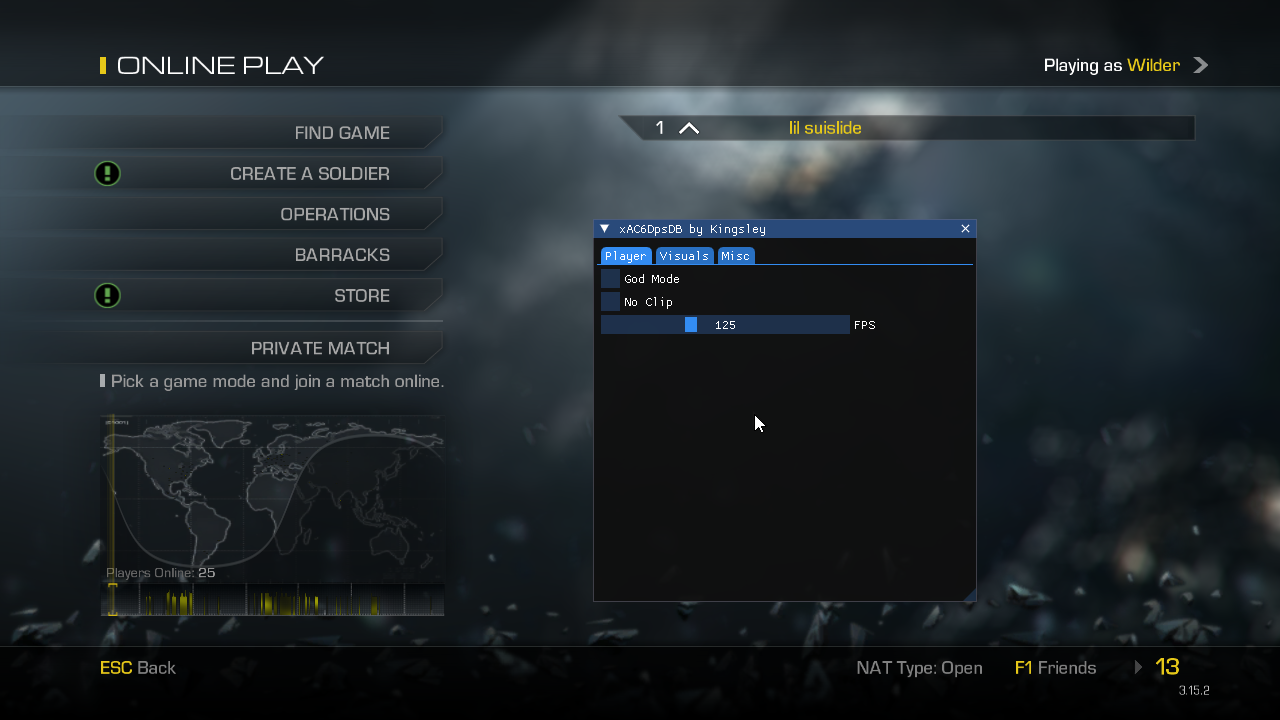

Menu tabs: Player, Visuals, Misc (theme, accent color, save/load config).

Build

Visual Studio

1. Open ImGui DirectX11 Base.sln.
2. Select Release x64.
3. Build — output is Build/Corrupted.dll.

VS Code / Cursor

• Default build task: Release x64 (.vscode/tasks.json).

Requirements

• Configuration type: Dynamic Library (.dll)
• Windows SDK 10
• Platform toolset: v143
• C++20, Multi-Byte character set
• Link: d3d11.lib, dxgi.lib, d3dcompiler.lib

Layout

ImGui DirectX11 Base/
  src/
    dllmain.cpp
    gui/
      bootstrapper.cpp   — D3D11 hooks, overlay lifetime
      gui.cpp            — menu shell
      pages/             — player, visuals, misc
    game/                — game hooks, offsets, structs (stubs)
    project/             — config (INI), helpers, your features
  ext/                   — imgui, minhook, mINI (read-only)
  Build/                 — Corrupted.dll

Put your logic in src/project/ and game-facing code in src/game/. Config saves to Corrupted.ini next to the host executable.

Usage

Inject Build/Corrupted.dll into a DirectX 11 process.
